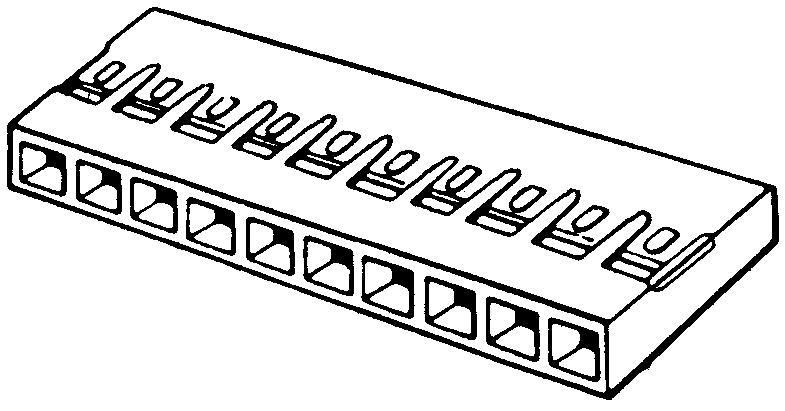

AMPHENOL COMMUNICATIONS SOLUTIONS 65039025LF Wire-to-Board Connector
The Mini-PV 65039 series crimp-to-wire connector system ensures reliable connections between discrete wires and printed circuit boards. It features high-reliability dual-metal receptacle terminals that connect to industry-standard 0.025-inch (0.635 mm) square posts. The system offers various containment, protection, and guidance options on both sides of the interface. The wire side uses PV® receptacle terminals that can be terminated to individual wires or inserted into multi-circuit MINI-LATCH connector housings with optional polarizing keys for correct mating. The printed circuit side utilizes shrouded multi-post headers with an integral friction feature that secures the MINI-LATCH housings and minimizes disengagement risk. The dual-metal PV® receptacle contacts maintain consistent contact pressure over up to 1000 mating cycles, with a beryllium copper spring providing high normal force and a brass contact body ensuring a gas-tight crimp termination. Additional features include side walls that engage with MINI-LATCH housings for enhanced retention, compatibility with single or double-row configurations, and keying features for polarization to prevent mis-mating. The two-wall header design offers improved mechanical stability and cost efficiency. Suitable for applications such as sensing and instrumentation, medical devices, avionics, defense, military, aerospace, communications, automotive, consumer electronics, and industrial systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 65039025LF Wire-to-Board Connector Specifications:
- Contact Material: Brass body and beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0
- Electrical Rating: 3.0A with 32 AWG wire, withstand voltage 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ
- Durability: 1000 mating cycles
- Temperature Range: -40°C to +105°C
- Wire Gauge Range: Up to 1.52mm wire diameter
- Application: Medical, industrial, automotive, data, aerospace, communications
- Compatible with single and double row configurations
- Housing: UL94V-0 modified polyphenylene oxide, glass-filled nylon headers
- Mating Force: 75g - 450g depending on spring type
- Un-mating Force: 175g - 450g depending on spring type
Buy the FCI Series 65039 Wire-to-Board Connector: 65039025LF
Purchase the FCI Series 65039 wire-to-board connector system online now to benefit from reliable, high-performance connections suitable for medical, industrial, and automotive applications. This connector features dual-metal receptacle contacts, polarization to prevent mis-mating, and a durable housing designed for up to 1000 mating cycles. Its versatile design supports single and double-row configurations, with high electrical ratings and excellent resistance performance. Ensuring secure termination and easy mating, this system is ideal for demanding electronic assembly needs in various high-tech industries. Buy now for quality assurance and fast delivery.
Order your FCI Series 65039 65039025LF today and ensure dependable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65039025LF?
You can click on the BUY or RFQ button to purchase 65039025LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65039025LF?
You can download the 65039025LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65039025LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
