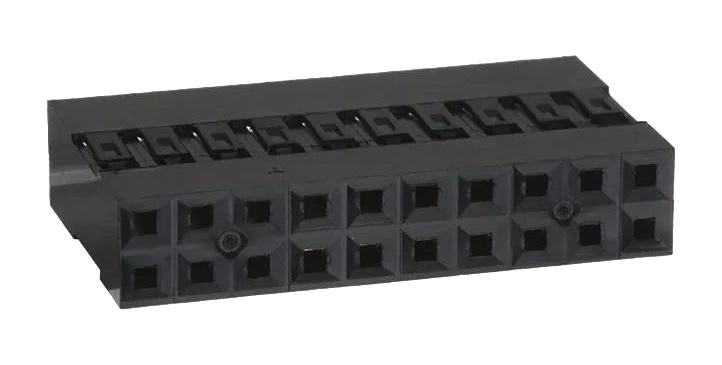

AMPHENOL COMMUNICATIONS SOLUTIONS 65043021LF Wire-to-Board Connector
The PV Wire-to-Board Connector System by Amphenol ICC offers a versatile, durable, and high-performance solution for demanding electronic applications. Featuring dual-metal receptacle contacts with beryllium copper springs, polarized MINI-LATCH housings, and shrouded headers, this modular system ensures reliable, gas-tight connections with resistance up to 1000 mating cycles. Suitable for automotive, industrial, medical, and data environments, it supports high currents up to 3.0A, withstands voltages of 1000V RMS, and operates across -40°C to +105°C, all compliant with ROHS standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 65043021LF Wire-to-Board Connector Specifications:
- Contact Material: Brass with gold or lead-free tin plating
- Housing Material: Modified polyphenylene oxide UL94V-0, glass-filled nylon UL94V-0
- Current Rating: 3.0A per circuit with 32 AWG wire
- Voltage Rating: 1000V RMS
- Temperature Range: -40°C to +105°C
- Mating Durability: Up to 1000 cycles
- Insulation Resistance: Wire >10000MQ, Header >5000MQ
- Contact Resistance: Less than 2mQ
- Spring Force Options: 450g high force, 100g ultra-high force
- Un-mating Force: 75g high, 175g ultra-high
- Contact Retention: 4 lbs per contact in MINI-LATCH housing
- RoHS Compliant: All parts with 'LF' suffix
- Number of Positions: Range from 03 to 72 depending on series
- Application: Automotive, industrial, consumer, medical, instrumentation
Buy the Buy Amphenol PV Wire-to-Board Connector Part Number 65043021LF Online
Purchase the Amphenol PV wire-to-board connector system online today and enjoy high reliability, polarization features, and durable crimping. Ideal for automotive, industrial, and medical electronics, this modular connector supports up to 1000 mating cycles, with safety and environmental compliance. Its high current capacity and voltage rating make it suitable for a wide range of demanding applications. With easy-to-use tooling and versatile configurations, it ensures optimal performance and secure connections, delivering quality you can trust for all your electronic connection needs.
Order your Amphenol Series65043021LF durable wire-to-board connector today and ensure reliable connections for demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65043021LF?
You can click on the BUY or RFQ button to purchase 65043021LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65043021LF?
You can download the 65043021LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65043021LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
