AMPHENOL COMMUNICATIONS SOLUTIONS 65801008LF Flexible Circuit Connector
The CLINCHER connector system offers reliable and cost-effective flexible circuitry terminations, including pin and receptacle connectors designed for flat flexible cables and printed circuits. Incorporating gas-tight 'clinch' terminations, highly-reliable Mini PV contacts, positive locking, and polarization options, these connectors ensure secure, contamination-free connections suitable for various industries such as medical, industrial, appliances, and POS systems. The system's robust design includes multiple series with different configurations, plating options, and compatibility with industry-standard headers, making it ideal for high-reliability applications requiring durable, efficient connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801008LF Flexible Circuit Connector Specifications:
- Housing material: Polypropylene UL 94 V-0, Blue
- Contact body: Receptacles of Cupro-nickel; Pin Headers of Phosphor Bronze
- Contact spring: Beryllium Copper with 3u Gold GXT or 10u lead-free plating
- Electrical: Resistance 10 mO max; Insulation Resistance 5000 MO min; Withstanding Voltage 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Mechanical: Mating force max 300 grams per contact; Latch retention minimum 4 lbs; Contact retention min 30 grams; Cable retention 10 lbs/inch
- Cable: IPC Standard, FC-220 B type, tolerance class IV, max 0.33mm thickness, conductor width 1.57mm
- Insulation: Mylar® or KAPTON® Polyimide
- Tools: PV-219E semi-automatic and HT-0274 hand tool for mass termination
- Durability: 100 mating cycles

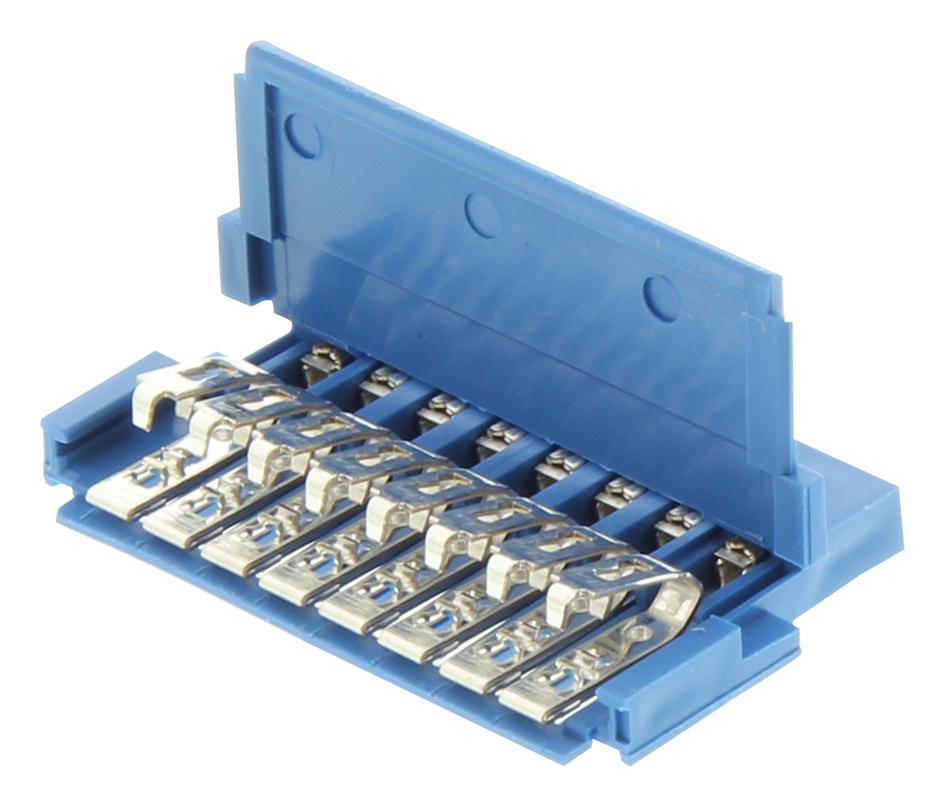

Buy the Buy FCI Clincher Connector Part Number 65801008LF Online
Purchase the FCI Clincher connector system online today to ensure secure, gas-tight, and contamination-free connections for flat flexible cables and printed circuits. Designed for high reliability across medical, industrial, appliance, and POS markets, this system features gas-tight clinch terminations, Mini PV contacts, polarization options, and multiple configurations for versatile applications. With tools for efficient mass termination and durable, high-quality materials, these connectors guarantee optimal performance, easy assembly, and long-term connection stability, making them an essential choice for demanding electronic environments.
Get FCI Clincher connector today—built for precision, reliability, and long-lasting durability in flexible circuitry applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801008LF?
You can click on the BUY or RFQ button to purchase 65801008LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801008LF?
You can download the 65801008LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801008LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
