AMPHENOL COMMUNICATIONS SOLUTIONS 65801017LF Flexible Circuit Connector
The Clincher series connector family includes single-row pin and receptacle connectors designed for termination to flat flexible circuitry, including FFC, FPC, and conductive ink circuits. These connectors feature gas-tight, contamination-free termination with four contact points per conductor, utilizing reliable Mini PV dual-metal contacts and a housing window for crimp inspection. The receptacle incorporates beveled lead-in openings to minimize stubbing risk and is available in sizes from 2 to 34 positions. Additional features include polarization options for proper alignment, positive-locking latching for secure mating, and compatibility with shrouded PCB headers for proper termination. The design accelerates cable assembly processes and ensures high reliability during termination and disconnection, suitable for consumer electronics, logistics, industrial, sensing, instrumentation, and medical applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801017LF Flexible Circuit Connector Specifications:
- Housing Material: Polypropylene UL 94 V-O, Blue
- Contact Material: Copper alloys with 3u Gold/GXT or 10u lead-free plating
- Contact Resistance: ≤10 mΩ initial, ≤20 mΩ after environment exposure
- Insulation Resistance: ≥5000 MΩ
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 A per contact
- Cable Specification: IPC Standard FC-220 B, Tolerance Class IV
- Cable Thickness: Max 0.33mm including insulation
- Insulation Material: Mylar® or KAPTON® Polyimide
- Conductor Width: 1.57mm ±0.07mm
- Conductor Thickness: 0.076mm ±0.013mm
- Connection Cycles: 100 mating cycles

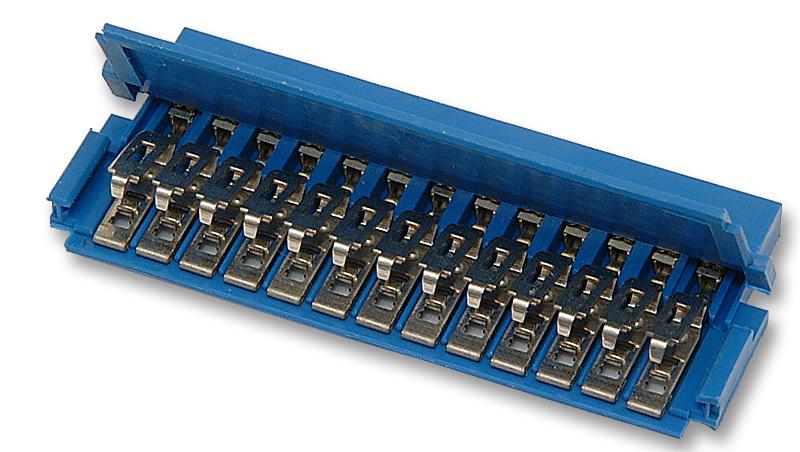

Buy the FCI Series CLINCHER Connector: 65801017LF
Enhance your electronic assembly with FCI Series CLINCHER connectors. Designed for flexible circuitry such as FFC, FPC, and conductive ink, these connectors ensure gas-tight, contamination-free terminations with highly-reliable Mini PV contacts. Their robust housing, polarization options, and secure latching provide optimal alignment and mating security, reducing assembly time. Suitable for consumer electronics, industrial instrumentation, medical devices, and more, the connectors simplify mass termination processes, increase reliability, and reduce costs while maintaining high performance in demanding applications.
Buy FCI Series CLINCHER 65801017LF flexible circuitry connectors now and experience unmatched reliability and performance in electronic assembly.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801017LF?
You can click on the BUY or RFQ button to purchase 65801017LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801017LF?
You can download the 65801017LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801017LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
