AMPHENOL COMMUNICATIONS SOLUTIONS 65846006LF Wire-to-Board Connector
The Mini-PV 65846 series crimp-to-wire connector system delivers dependable wire-to-board connections, featuring high-reliability dual-metal receptacle terminals for industry-standard 0.025-inch posts. It offers various containment, protection, and guidance options on both sides. Wire-terminals can be terminated or inserted into multi-circuit housings with polarizing keys. The system includes shrouded headers with friction features preventing disengagement, plus a dual-metal contact maintaining pressure over 1000 cycles. Its optional configurations include single or double-row, polarized, and cost-effective two-wall headers, suitable for diverse applications including medical, automotive, industrial, and aerospace markets.
AMPHENOL COMMUNICATIONS SOLUTIONS 65846006LF Wire-to-Board Connector Specifications:
- Contact material: Brass body with beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Polyphenylene oxide UL94V-0, Glass-filled nylon UL94V-0
- Electrical performance: 3.0A current rating, 1000V RMS withstand voltage, >10000MQ insulation resistance, <2MQ contact resistance
- Temperature range: -40°C to +105°C
- Mating cycles: 1000
- Wire range: Up to 1.52mm diameter wires, various AWG sizes supported
- Application: Compatible with industry-standard 0.025-inch posts, various pole counts, polarized and unpolarized options
- Mechanical features: Side walls engage with MINI-LATCH housings for retention; cost-effective two-wall header design
- Certifications: URE66906, CSALR46923

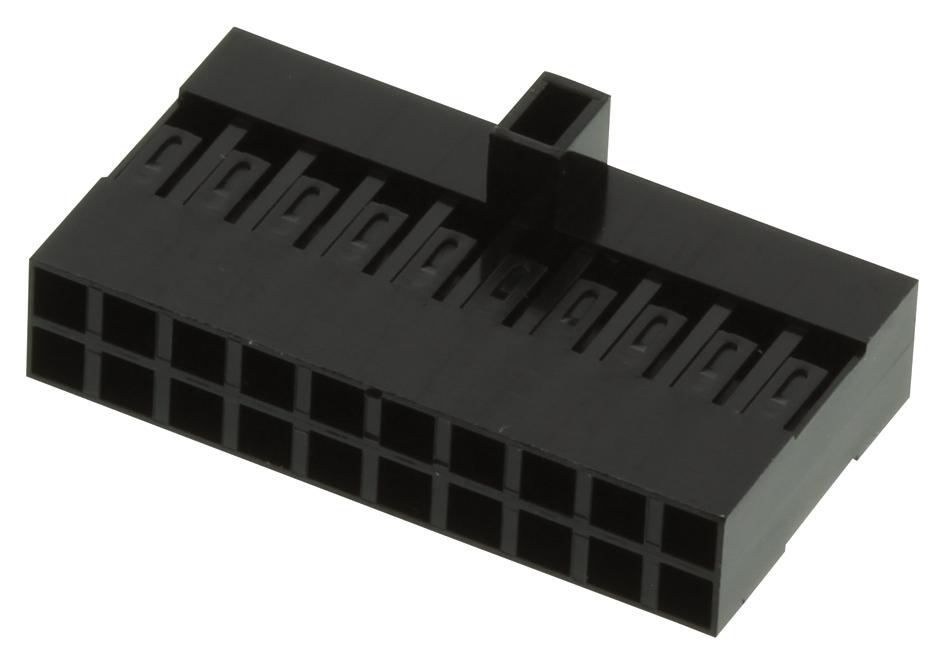

Buy the FCI Series 65846 Polarized Wire-to-Board Connector System: 65846006LF
Secure your electronic assemblies with the reliable FCI Series 65846 wire-to-board connector system. Designed with dual-metal contacts and polarization features, this versatile connector ensures long-lasting, gas-tight connections across a range of applications from industrial to aerospace. Available in single or double-row configurations, it supports wires up to 1.52mm diameter and withstands 1000 mating cycles, making it ideal for demanding environments. Seamlessly connect discrete wires with confidence by ordering online today for quick delivery and guaranteed quality.
Order your FCI Series 65846 polarized wire-to-board connector system today and ensure secure, reliable connections for your critical electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65846006LF?
You can click on the BUY or RFQ button to purchase 65846006LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65846006LF?
You can download the 65846006LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65846006LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
