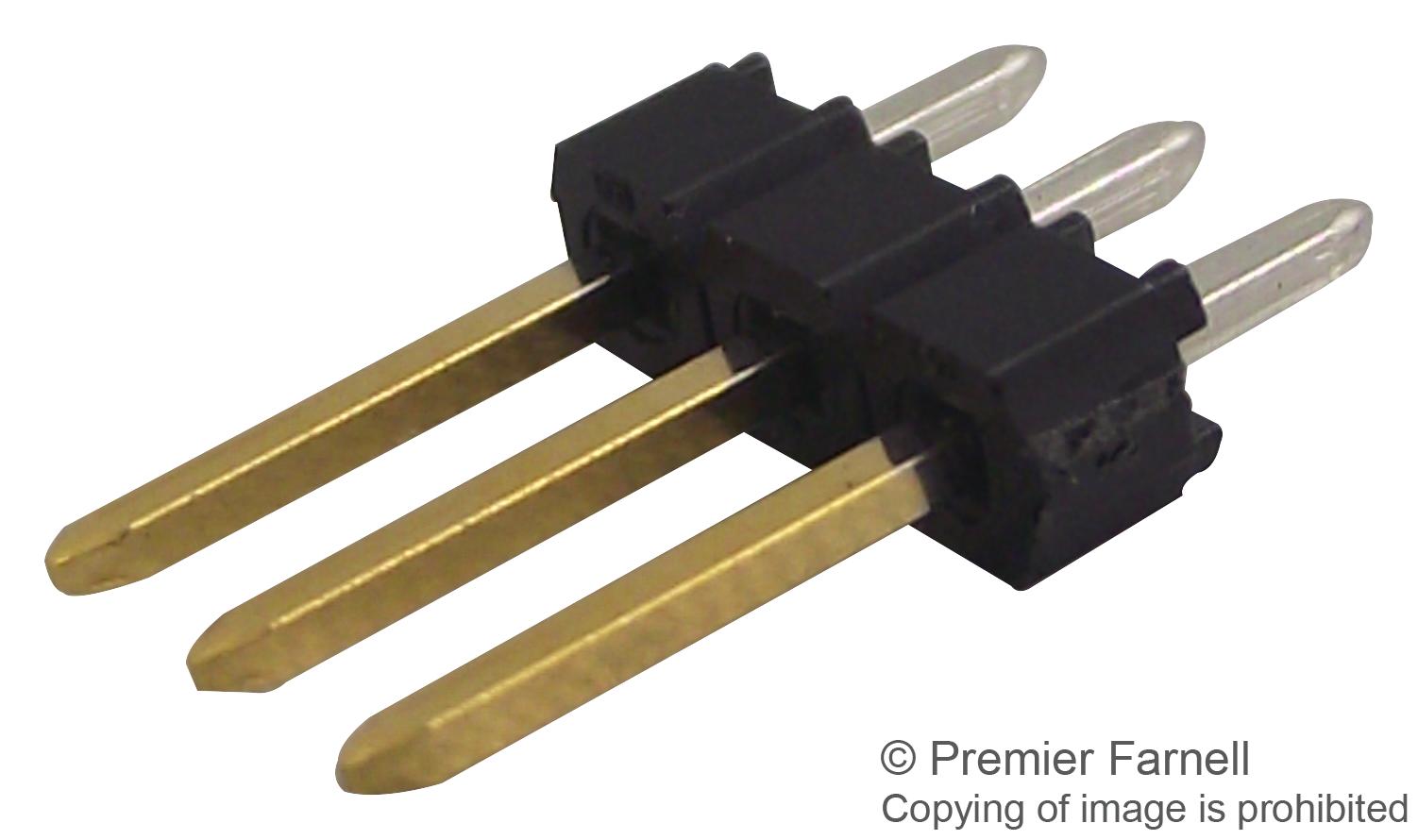

AMPHENOL COMMUNICATIONS SOLUTIONS 67997140HLF Unshrouded Headers
The BergStik 2.54mm unshrouded headers are versatile, cost-efficient connectors suitable for PCB assembly in various configurations. Available in surface-mount (SMT), through-hole (THT), press-fit, stacking, and pin-in-paste versions, these headers come in single and double rows with straight or right-angle options, accommodating 2 to 72 positions. Designed from high-temperature thermoplastic with gold or tin plating over nickel, they support up to 3A per contact, withstand operating temperatures from -65°C to +125°C, and are RoHS compliant. Perfect for board-to-board, wire-to-board, and industrial interconnects, they meet DIN, HE13, and BT D2632 standards, with reflow compatibility and up to 100 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 67997140HLF Unshrouded Headers Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27µm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min.
- Retentive Leg Insertion Force: >44.48N max
- RoHS compliant
- Compatible with wave, vapor-phase, and IR reflow soldering
- Suitable for up to 100 mating cycles
- Dimensions vary depending on configuration, supporting from 2 to 72 positions
- Compatible with optional custom lengths and PCB layouts, with tape-and-reel packaging options
Buy the FCI Series BergStik 2.54mm Unshrouded Headers: 67997140HLF
Purchase FCI BergStik 2.54mm unshrouded headers online today for high-quality, versatile interconnect solutions suitable for PCB assembly, industrial, and electronic equipment. Designed from durable high-temperature thermoplastic, these headers ensure reliable electrical performance with up to 3A per contact, RoHS compliance, and compatibility with various soldering processes. Available in single and double row options, straight or right-angle configurations, and supporting up to 72 positions, they offer flexible, cost-effective connectivity. Order now for fast delivery and trusted quality assurance across multiple assembly environments.
Get FCI BergStik 2.54mm unshrouded headers today—built for reliable PCB connections and industrial-grade durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 67997140HLF?
You can click on the BUY or RFQ button to purchase 67997140HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 67997140HLF?
You can download the 67997140HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 67997140HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
