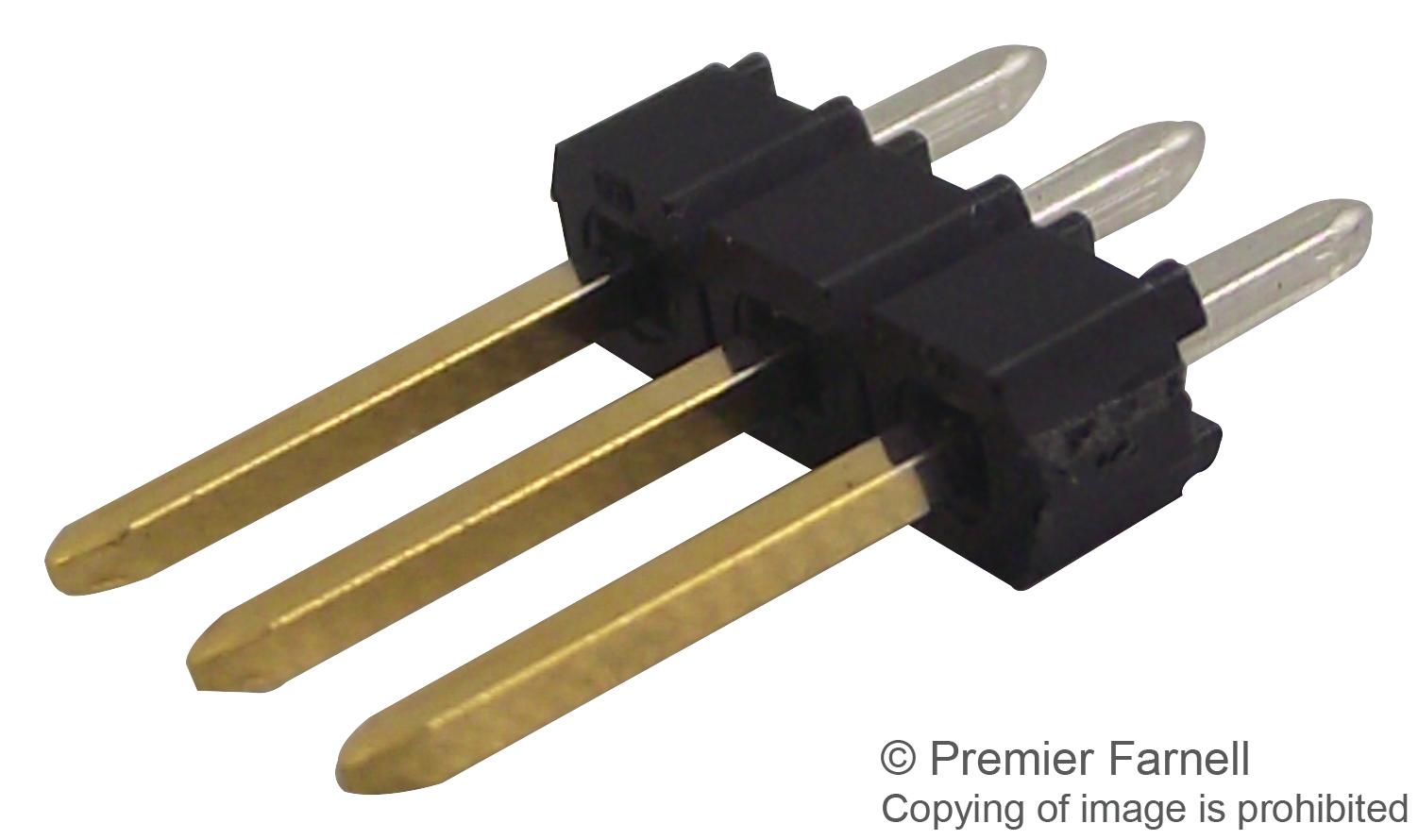

AMPHENOL COMMUNICATIONS SOLUTIONS 68001406HLF Interconnect Header
The BergStik 2.54mm unshrouded headers are versatile interconnect solutions suitable for various electronic applications, including Board-to-Board, Wire-to-Board, and Cable-to-Board connections. Featuring high-temperature thermoplastic housing with UL94V-0 flammability rating, these headers support through-hole, surface-mount, stackable, and pin-in-paste processes. They are designed with phosphor-bronze pins plated in gold or tin over nickel, offering 3A per contact current rating, Insulation Resistance of 5000MQ, and operating temperatures from -65°C to +125°C. Mechanical retention ensures secure connections, and RoHS compliance guarantees environmental safety.
AMPHENOL COMMUNICATIONS SOLUTIONS 68001406HLF Interconnect Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ minimum
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N minimum
- Compatible with wave, vapor-phase, and IR reflow soldering processes
- RoHS compliant according to EU Directive 2002/95/IEC
- Available in straight, right angle, single and double row configurations
- Supports pin-in-paste manufacturing process
- Designed for 30 to 72 positions depending on variant
- Housing: High temp thermoplastic with UL94V-0 flammability rating
- Plating options include gold and tin over nickel
- Suitable for applications requiring up to 100 mating cycles
Buy the Buy BergStik 2.54MM Unshrouded Headers Part Number 68001406HLF Online
Enhance your electronic assembly with BergStik 2.54mm unshrouded headers, offering flexible configurations and robust electrical performance. These headers support various mounting options such as SMT, THT, stackable, and pin-in-paste processes, ensuring compatibility with multiple manufacturing methods. Made with high-temperature thermoplastic and plated for durability, they provide secure connections with high retention force. Ideal for industrial, automotive, and consumer electronics, these headers promote efficient and reliable interconnections in compact layouts. Purchase online today and streamline your production process with trusted quality.
Buy BergStik 2.54MM unshrouded headers now and experience reliable connection solutions for your electronic projects.
