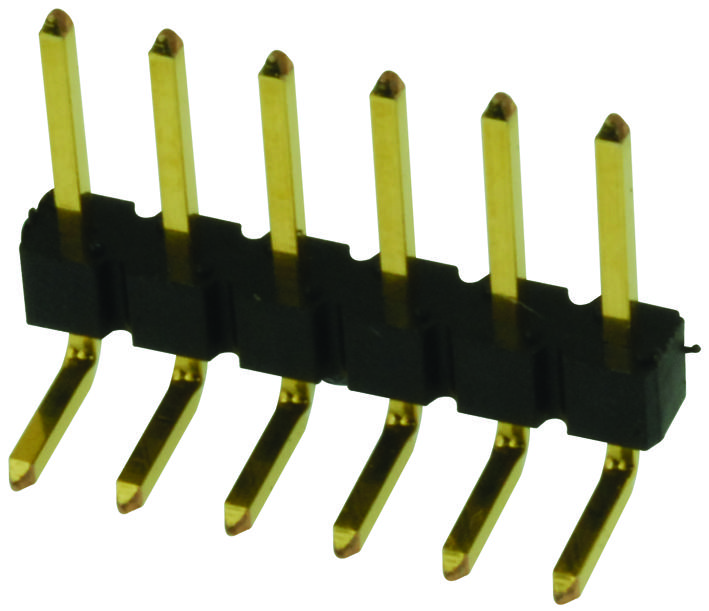

AMPHENOL COMMUNICATIONS SOLUTIONS 68016106HLF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile electronic interconnects designed in various configurations including vertical, right-angle, stacking, and pin-in-paste versions. Made from high temperature thermoplastic with UL94V-0 flammability rating, these connectors feature phosphor-bronze pins with gold or tin plating over nickel. Rated for 3A per contact, they offer excellent insulation resistance of 5000MQ and withstand voltages up to 1500V. Operating temperature ranges from -65°C to +125°C, making them ideal for demanding industrial, automotive, and electronic applications, providing reliable and cost-effective connection solutions with up to 100 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 68016106HLF Unshrouded Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or Tin over 1.27µm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min
- Retentive Leg Insertion Force: >44.48N max
- Board retention: 2.22N
- Compatible with wave, vapor-phase, and IR reflow soldering
- RoHS compliant according to EU Directive 2002/95/IEC
- Packaging options: Bags, Tape-and-reel with pick-up cap, or tubes
- Available in single and double row configurations, straight or right-angle, from 2 to 72 positions
- Meets DIN 41651, HE13, BT D2632 standards
- Designed for up to 100 mating cycles
Buy the FCI 68016106HLF – Reliable Electronic Headers for Industrial Applications
Enhance your electronic device assembly with the reliable FCI unshrouded headers. Designed for durability and high performance, these connectors feature gold or tin plating, operate at up to 125°C, and carry a 3A current per contact. Suitable for PCB-mounting in industrial, automotive, and automation applications, they support reflow soldering processes and are RoHS compliant. With a variety of configurations including straight, right-angle, single and double row options, you can customize for your specific needs. Order online today for fast delivery and excellent value.
Order your FCI 68016106HLF series headers today and enhance your electronic projects with dependable, cost-efficient interconnect solutions for industrial use.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68016106HLF?
You can click on the BUY or RFQ button to purchase 68016106HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68016106HLF?
You can download the 68016106HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68016106HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
