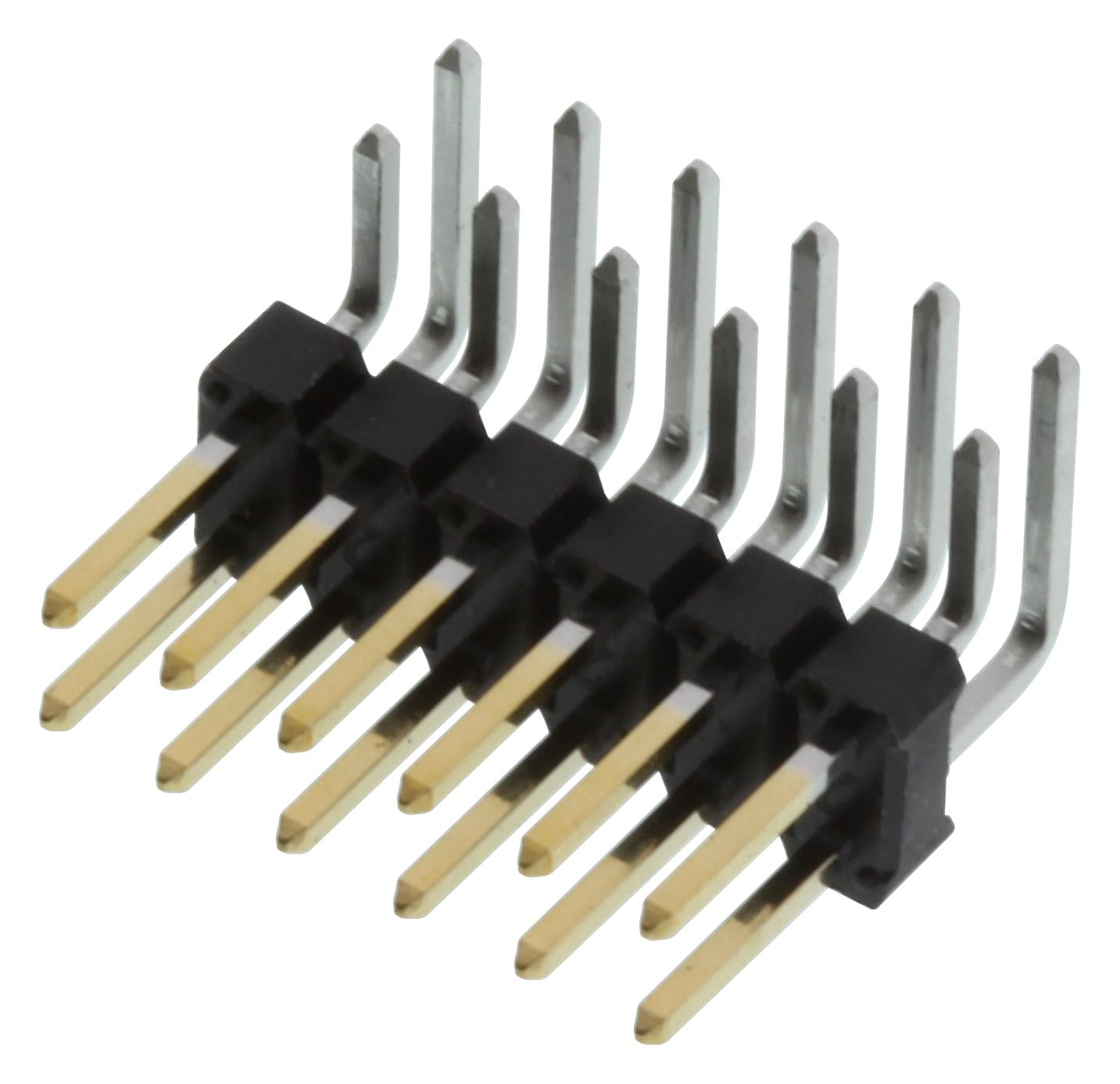

AMPHENOL COMMUNICATIONS SOLUTIONS 68021112HLF Unshrouded Header Connector
The part is a 2.54mm unshrouded header connector, available in various configurations like vertical, right angle, stacking, and pin-in-paste types. Made from high-temperature thermoplastic with UL94V-0 flammability rating, it features phosphor-bronze pins plated with gold or tin over nickel. Designed for reliable electrical performance with a current rating of 3A per contact, insulation resistance of 5000MQ min, and dielectric withstand voltage of 1500V. It operates within -65°C to +125°C, ensuring durability in diverse environments suitable for industrial and automotive applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 68021112HLF Unshrouded Header Connector Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ minimum
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical retention force: 9N minimum
- Housing color: Black
- RoHS compliant
- Compatible with wave, vapor-phase, IR reflow soldering
- Available in SMT, THT, stacking, and pin-in-paste versions
- Various configurations: Single and double row, straight or right angle
- Standard packaging: Bags, optional tube or tape-and-reel with pick-up cap
- Custom lengths and configurations available with initial setup
Buy the Fci Series 2.54MM Unshrouded Header: 68021112HLF
Discover the high-quality 2.54mm unshrouded header connector designed for board-to-board, wire-to-board, and pin-in-paste applications. Crafted from high-temperature thermoplastic with UL94V-0 rating, it features phosphor-bronze pins plated with gold or tin over nickel for excellent electrical contact. Suitable for industrial and automotive use, it supports up to 3A per contact and operates from -65°C to +125°C, ensuring durable performance. Available in various configurations including single and double rows, straight or right angle options, and standard or custom lengths. Buy online today for dependable, versatile interconnect solutions for electronic assemblies.
Order your Fci Series 2.54MM Unshrouded Header 68021112HLF today and ensure reliable connections for your electronic projects with high-quality interconnect solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68021112HLF?
You can click on the BUY or RFQ button to purchase 68021112HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68021112HLF?
You can download the 68021112HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68021112HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
