AMPHENOL COMMUNICATIONS SOLUTIONS 68021272HLF Unshrouded Header
The BergStik II 68021 series unshrouded header is a flexible, breakaway connector designed for diverse electronic applications. It offers single and double row configurations, with straight or right-angle options, from 2 to 72 positions. Made from high-temperature thermoplastic with 0.25µm tin-lead plating, it can withstand up to 100 mating cycles. Ideal for board-to-board, mezzanine, and stacking connections, it supports adjustable spacing, dual top or bottom entry, and features for easy PCB installation, high retention force, and reflow soldering compatibility, making it a durable choice for industrial, consumer, and communication devices.
AMPHENOL COMMUNICATIONS SOLUTIONS 68021272HLF Unshrouded Header Specifications:
- Housing: High temperature thermoplastic
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27µm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ minimum
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Breakaway design for customizable length
- Supports 2 to 72 positions in single or double row
- Maximum mating cycles: 100
- Reflow compatible and easy to clean
- High retention force, suitable for diverse industry applications

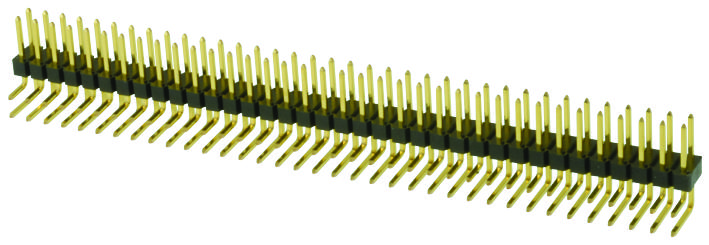

Buy the FCI Series BergStik 2.54mm Unshrouded Headers: 68021
Order the BergStik 2.54mm unshrouded headers online today and benefit from their versatile design, high-temperature resistant thermoplastic, robust construction, and support for up to 100 mating cycles. These connectors offer excellent board-to-board and stacking capabilities, with options for single or double row configurations, straight or right-angle orientations, and adjustable spacing. Designed for industrial, communication, consumer electronics, and medical applications, they are reflow soldering compatible, easy to clean, and provide reliable electrical connections for complex electronic assemblies.
Buy FCI BergStik 68021 unshrouded headers now and experience unmatched flexibility, reliability, and ease of PCB assembly for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68021272HLF?
You can click on the BUY or RFQ button to purchase 68021272HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68021272HLF?
You can download the 68021272HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68021272HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
