AMPHENOL COMMUNICATIONS SOLUTIONS 68683304LF Board Connector
The product is a versatile wiring component designed for board-to-board connections with a low profile and high reliability. It features dual-beam contacts for durability, a stackable design for flexible configurations, and robust materials like thermoplastic housing and phosphor-bronze pins plated with gold or tin. Suitable for a range of applications, it offers high current ratings, environmental resilience, and compatibility with various soldering processes. The component ensures signal integrity, easy testing, and reusability for demanding electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 68683304LF Board Connector Specifications:
- Housing: High temperature thermoplastic, UL94V-0 flammability rating
- Pin: Phosphor-bronze with gold or tin over 1.27m nickel plating
- Current rating: 2.54A max. per contact (shunts), 3A max. per contact (receptacles)
- Insulation resistance: 50,000MQ min. (shunts), 1x10°MQ min. (receptacles)
- Contact resistance: 15MQ max. initial, 20MQ max. after environmental tests
- Dielectric withstanding voltage: 800V (shunts), 1000V RMS (receptacles)
- Operating temperature: -65°C to +125°C
- Mating cycles: 50 (shunts), 200 (receptacles)
- Insertion force: 450 gf max. (gold), 500 gf max. (tin-lead)
- Withdrawal force: 30 gf min. (gold and tin-lead)
- Insertion depth: 4.85 mm min. (shunts), 3.6mm to 6.7mm (receptacles)
- Dimensions, materials, and approvals compliant with UL94V-0, RoHS

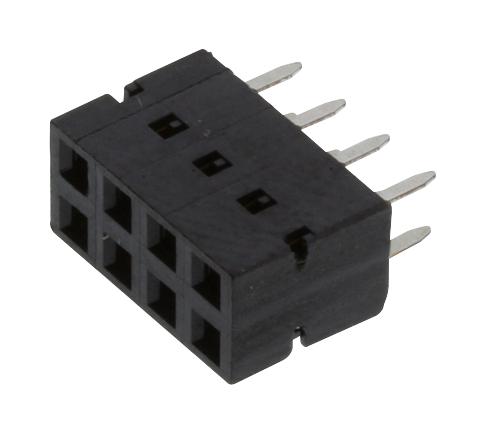

Buy the Buy FCI DUBOX™ Connectors Part Number 68683304LF Online
Purchase your FCI DUBOX™ low profile connector online today to ensure high-quality, reliable board-to-board connections. Designed with dual-beam contacts, stackable configurations, and high-temperature thermoplastic housing, this component guarantees signal integrity and durability. It features gold or tin plating over nickel for excellent conductivity and corrosion resistance, suitable for environmental conditions from -65°C to +125°C. Easy to solder with compatibility for wave, IR reflow, and vapor-phase soldering processes, it is ideal for demanding electronic assemblies requiring robust and repeatable connections.
Order your FCI DUBOX™ Series68683304LF connector today and enhance your electronic projects with dependable low profile connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68683304LF?
You can click on the BUY or RFQ button to purchase 68683304LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68683304LF?
You can download the 68683304LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68683304LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
