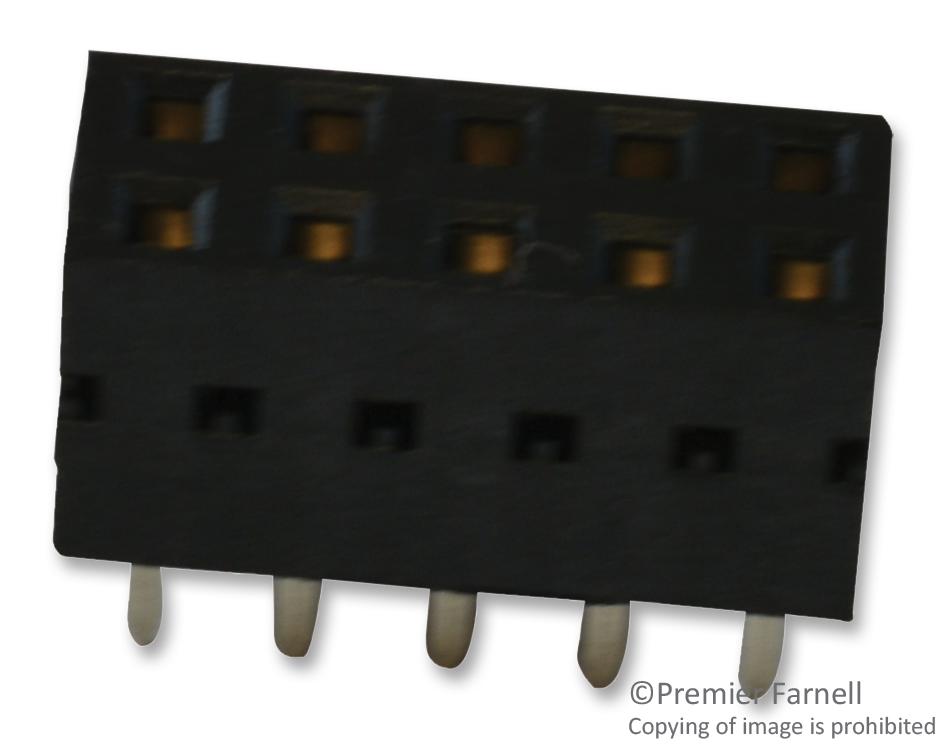

AMPHENOL COMMUNICATIONS SOLUTIONS 68683305LF Board-to-Board Connector
The 68683 series DUBOX Board-to-Board Connector is suitable for diverse industrial and communication applications, offering reliable signal integrity and low insertion force. Designed with a dual-beam, pre-stressed contact structure, it ensures consistent low contact resistance and high durability. Available in single or double-row configurations with straight or right-angle orientations, it accommodates 2 to 50 positions. Made from high-temperature thermoplastic with gold or tin plating, it withstands operating temperatures from -65°C to +125°C. Compatible with vapor-phase and IR reflow soldering, it features floating solder tails for self-centering and precise assembly in industrial control, networking, and testing systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 68683305LF Board-to-Board Connector Specifications:
- Housing Material: Thermoplastic polyester, high-temperature resistant
- Contact Material: Phosphor-bronze
- Plating: Gold or tin over nickel
- Current Rating: 3A per contact
- Operating Temperature: -65°C to +125°C
- Insulation Resistance: ≥10^5 MΩ
- Contact Resistance: ≤15 mΩ initial, ≤20 mΩ after environmental testing
- Dielectric Withstanding Voltage: 1000V RMS
- Mating Cycles: 200
- Insertion Force: ≤1.50 N (gold contacts)
- Withdrawal Force: ≥0.30 N
- Number of Positions: 2 to 50 (configurable)
- Assembly: Compatible with IR and vapor-phase reflow soldering
- Mounting: Single or double-row configurations, straight or right-angle orientations
Buy the FCI 68683305LF – Reliable Board-to-Board Connectors for Industrial Applications
Secure your industrial systems with the FCI Series68683LF board-to-board connector. Featuring a dual-beam, low insertion force design and high-temperature thermoplastic construction, it withstands demanding environments from -65°C to +125°C. Compatible with vapor-phase and IR reflow soldering, this connector ensures reliable, long-lasting connections in industrial control, networking, testing, and measurement applications. Available in configurations supporting 2 to 50 positions with straight or right-angle orientations, it offers robust signal protection and alignment, enhancing assembly efficiency and operational dependability.
Order your FCI Series68683LF durable board-to-board connector today and ensure dependable performance in your industrial and networking projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68683305LF?
You can click on the BUY or RFQ button to purchase 68683305LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68683305LF?
You can download the 68683305LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68683305LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
