AMPHENOL COMMUNICATIONS SOLUTIONS 68683320LF Wire-to-Board Connector
The product is a high-quality, low-profile wire-to-board connector designed for reliable electrical connections in electronic assemblies. It features a dual-beam contact design for low insertion force and downstream signal integrity. Made from glass-filled thermoplastic polyester with UL94V-0 flammability rating, it ensures durability and safety. Suitable for surface-mount applications, it operates within -65°C to +125°C. The connector supports up to 3A current per contact, with a dielectric withstand voltage of 1000V RMS. Its mechanical design offers 200 mating cycles and easy, secure mating with reinforced contact retention and signal protection features.
AMPHENOL COMMUNICATIONS SOLUTIONS 68683320LF Wire-to-Board Connector Specifications:
- Housing: Glass filled thermoplastic polyester, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27 mm nickel
- Current rating: 3A DC max. per contact
- Insulation resistance: 1x 10^9 MQ min.
- Contact resistance: 15 MQ max. initial, 20 MQ after environmental tests
- Dielectric withstanding voltage: 1000V RMS
- Operating temperature: -65°C to +125°C
- Mating cycles: 200
- Insertion force: 1.50 N (150gf) max. per gold contact
- Withdrawal force: 0.30 N (30gf) min. per gold contact
- Insertion depth: 3.6mm min. to 6.7mm max.
- Signal protection: 4-wall contact design

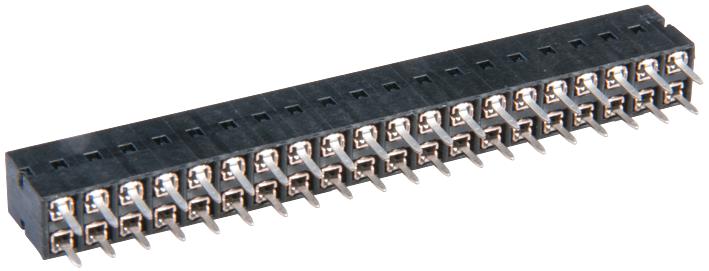

Buy the FCI Series DUBOX Wire-to-Board: 68683320LF
Order the FCI wire-to-board connector 68683320LF today for durable, low-profile electronic connections. Designed with dual-beam contacts for low insertion force, supporting up to 3A current and operating reliably from -65°C to +125°C. Made with UL94V-0 thermoplastic housing, it ensures safety and durability in demanding environments. These connectors offer 200 mating cycles, easy installation, and signal protection through a 4-wall contact design. Perfect for surface-mount applications requiring secure, high-performance electrical connections.
Get FCI 68683320LF today—built for precise, high-reliability connections in electronic assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68683320LF?
You can click on the BUY or RFQ button to purchase 68683320LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68683320LF?
You can download the 68683320LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68683320LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
