AMPHENOL COMMUNICATIONS SOLUTIONS 69167105HLF Wire-to-Board Connector
The PV wire-to-board connector system offers high reliability, durability, and retention for connecting discrete wires to printed circuit boards. It features dual-metal receptacle contacts with a high spring force, capable of 1000 mating cycles, and is suitable for industrial, medical, automotive, and data communication applications. The system includes single and double row, polarized, shrouded headers made from high-quality materials like brass, phosphor bronze, and glass-filled nylon, with gold or tin platings for excellent electrical performance. Compatible with various wire sizes up to 1.52 mm diameter, it supports reliable, gas-tight crimps and simplified mating with MINI-LATCH housings.
AMPHENOL COMMUNICATIONS SOLUTIONS 69167105HLF Wire-to-Board Connector Specifications:
- Contact material: Brass body with beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide or glass-filled nylon UL94V-0
- Current rating: 3.0A with 32 AWG wire, de-rated for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MΩ for wire connector, >5000MΩ for PCB headers
- Contact resistance: <2mΩ
- Durability: 1000 mating cycles
- Temperature range: -40°C to +105°C
- Wire range: Up to 1.52 mm diameter
- Mating force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating force: 75g (high force spring), 175g (ultra-high force spring)

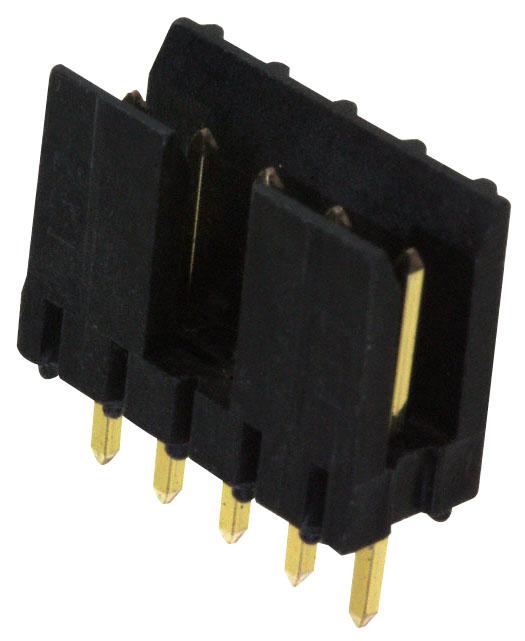

Buy the Buy FCI PV Wire-to-Board Part Number 69167105HLF Online
Purchase the reliable FCI PV wire-to-board connector system, featuring dual-metal contacts, polarization, high mating cycle count, and versatile configurations for industrial, medical, automotive, and data communication applications. This connector offers excellent electrical performance, with gold or tin platings, and supports wire sizes up to 1.52 mm diameter. Easy to assemble and maintain, it ensures gas-tight crimps and secure mating with MINI-LATCH housings. Ideal for high-demand applications requiring durability, safety, and dependable connectivity.
Get FCI PV wire-to-board connector system 69167105HLF today—designed for high reliability, durability, and easy connections in industrial and automotive electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69167105HLF?
You can click on the BUY or RFQ button to purchase 69167105HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69167105HLF?
You can download the 69167105HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69167105HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
