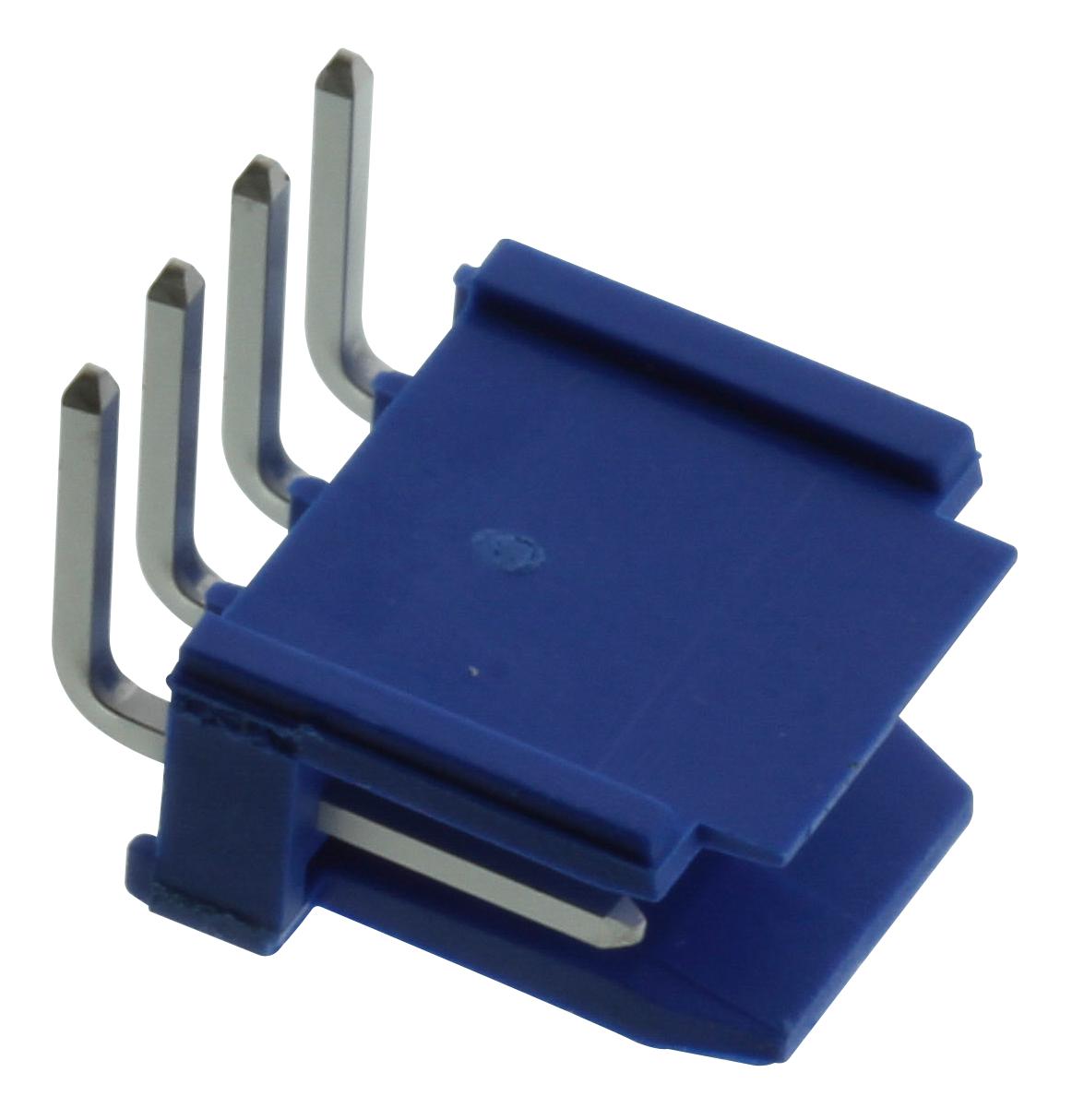

AMPHENOL COMMUNICATIONS SOLUTIONS 76382404LF Wire-to-Board Connector
The PV wire-to-board connector system offers high reliability and durability for industrial, medical, automotive, and communication applications. Featuring dual-metal crimp-to-wire terminals with high spring force, these connectors support up to 1000 mating cycles. Available in single or double row configurations with polarized MINI-LATCH housings, they provide secure, gas-tight connections for wire diameters up to 1.52mm. Various plating options and compatible tooling ensure precise and efficient crimping. They are designed for rugged environments and demanding electronic systems, ensuring long-lasting performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 76382404LF Wire-to-Board Connector Specifications:
- Contact material: Brass body and beryllium copper spring
- Housing material: Modified polyphenylene oxide UL94V-0 and glass filled nylon UL94V-0
- Contact plating: Gold or lead-free pure tin over nickel
- Current rating: 3.0A at 32 AWG wire, with de-rating for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10,000MQ for wire connector, >5000MQ for header
- Contact resistance: <2mQ
- Durability: 1000 cycles
- Temperature range: -40°C to +105°C
- Mating force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating force: 75g (high force spring), 175g (ultra-high force spring)
Buy the Amphenol-Communications-Solutions Series Wire-to-Board Connectors 76382404LF
Discover the high-quality PV wire-to-board connector system from FCI, designed for demanding industrial, medical, automotive, and communication applications. These reliable connectors feature dual-metal crimp terminals, polarized MINI-LATCH housings, and support up to 1000 mating cycles. They accommodate wire diameters up to 1.52mm and are available in single and double row configurations. With various plating options and robust housing materials, they provide long-lasting, gas-tight connections. Order online today and secure dependable, high-performance connectors for your projects.
Order your FCI PV wire-to-board connectors today and ensure secure, long-lasting connections for industrial, automotive, and communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 76382404LF?
You can click on the BUY or RFQ button to purchase 76382404LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 76382404LF?
You can download the 76382404LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 76382404LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
