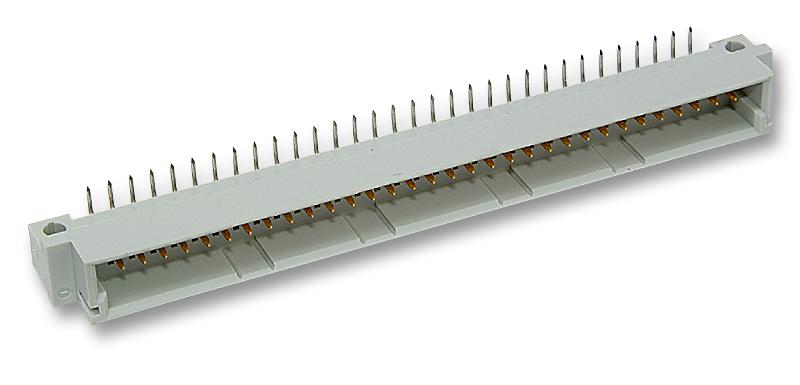

AMPHENOL COMMUNICATIONS SOLUTIONS 86092645113765E1LF DIN 41612 Connector
The DIN 41612 Signal Headers and Receptacles are durable, cost-effective connectors designed for industrial, telecom, and data applications. Featuring a 2.54mm pitch, modular design, and various mounting options, these connectors support up to 3 rows and 96 positions with solder or press-fit terminations. Made from polyester thermoplastic insulators and copper alloy contacts, they meet UL and CSA standards, offering reliable electrical performance with a current rating of 1.5A, test voltage of 1000V, and excellent vibration and shock resistance. Suitable for switching, routing, enterprise, medical, and energy transmission markets, they enhance PCB routing and connector flexibility.
AMPHENOL COMMUNICATIONS SOLUTIONS 86092645113765E1LF DIN 41612 Connector Specifications:
- Pitch: 2.54mm
- Number of Rows: Up to 3
- Positions: Up to 96
- Mounting Options: Solder and press-fit
- Material: Polyester thermoplastic insulator, copper alloy contacts
- Contact Plating: Gold over nickel or GXT® over nickel on mating surface, tin over nickel on solder termination
- Electrical: Current rating 1.5A at 20°C, max current 2A, test voltage 1000V, contact resistance < 20mΩ, insulation resistance > 10MΩ
- Mechanical: Insertion force < 0.94N, extraction force > 0.15N, contact retention > 20N
- Environmental: Operating temperature -55°C to +125°C, compliant with UL and CSA standards
- Vibration and shock resistance with < 40mΩ impedance, supports multiple accessories and mounting options
Buy the Amphenol Series DIN 41612 Signal Headers and Receptacles: 860926451137
Upgrade your electronic assembly with the high-quality DIN 41612 Signal Headers and Receptacles from Amphenol. Designed for durability and reliability, these connectors support up to 96 positions with modular options, ensuring flexible PCB routing solution for industrial, telecom, and data markets. Made from high-grade polyester thermoplastic and copper alloy contacts, they deliver high performance with low contact resistance, excellent environmental resistance, and UL/CSA approvals. Choose these connectors for cost-effective, customizable, and robust interconnection capable of withstanding harsh conditions, vibration, and high temperatures. Purchase online today to streamline your projects with trusted connectivity solutions.
Buy Amphenol DIN 41612 Signal Headers and Receptacles now and experience unmatched reliability and performance with versatile, cost-effective industrial connectors.
