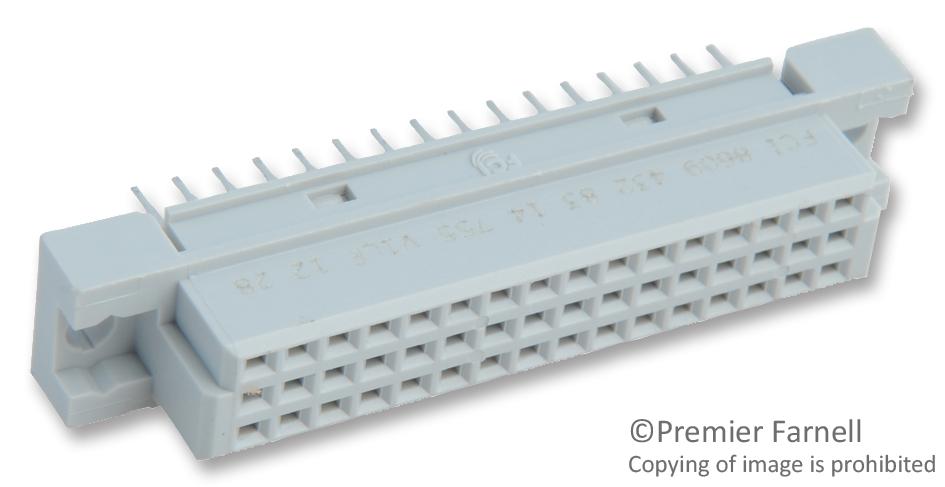

AMPHENOL COMMUNICATIONS SOLUTIONS 86094328314755V1LF Signal Header
DIN 41612 signal headers and receptacles provide reliable, cost-effective interconnection solutions for industrial, telecom, and data applications. Designed with a 2.54mm pitch, these connectors feature modular construction, wide accessory options, and compliance with IEC 603-2 standards. Made from high-quality polyester thermoplastic insulators and copper alloy contacts, they withstand temperatures from -55°C to +125°C, and offer excellent electrical performance with a maximum current of 2A. Suitable for high-density PCB routing, these connectors ensure durability, flexibility, and safe connections in various electronic environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 86094328314755V1LF Signal Header Specifications:
- Pitch: 2.54mm
- Material: Insulator - Polyester Thermoplastic; Contact - Copper Alloy
- Plating: Gold over Nickel or GXT® over Nickel on mating surfaces, Tin over Nickel on solder terminations
- Electrical: Current Rating - 1.5A, Max Current - 2A, Test Voltage - 1000V rms, Contact Resistance - < 20mΩ, Insulation Resistance - > 10 MΩ
- Mechanical: Mating Insertion Force - < 0.94N, Extraction Force - > 0.15N, Contact Retention - > 20N
- Environmental: Temperature Range -55°C to +125°C, Damp Heat Resistance - Up to 56 days for Class 1
- Certifications: UL and CSA approved, IEC 603-2 compliance
- Packaging: Tray, Tube, Carton
- Standard: DIN 41612, IEC 603-2
Buy the Buy FCI DIN 41612 Signal Headers Part Number 860943283147 Online
Secure your electronic projects with FCI DIN 41612 signal headers, featuring a 2.54mm pitch, robust construction, and high-temperature resistance. These connectors provide excellent electrical performance, with a maximum current of 2A and insulation resistance exceeding 10 MΩ. Suitable for industrial, telecom, and data markets, their modular design allows for flexible configurations, optional accessories like board-locks and shrouds, and ensures safe, durable connections through a wide operating temperature range from -55°C to +125°C. Easy online ordering guarantees quick delivery for your manufacturing or repair needs.
Order your FCI DIN 41612 signal header part number 860943283147 today and enhance your PCB connections with reliable, high-quality connectors designed for demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 86094328314755V1LF?
You can click on the BUY or RFQ button to purchase 86094328314755V1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 86094328314755V1LF?
You can download the 86094328314755V1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 86094328314755V1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
