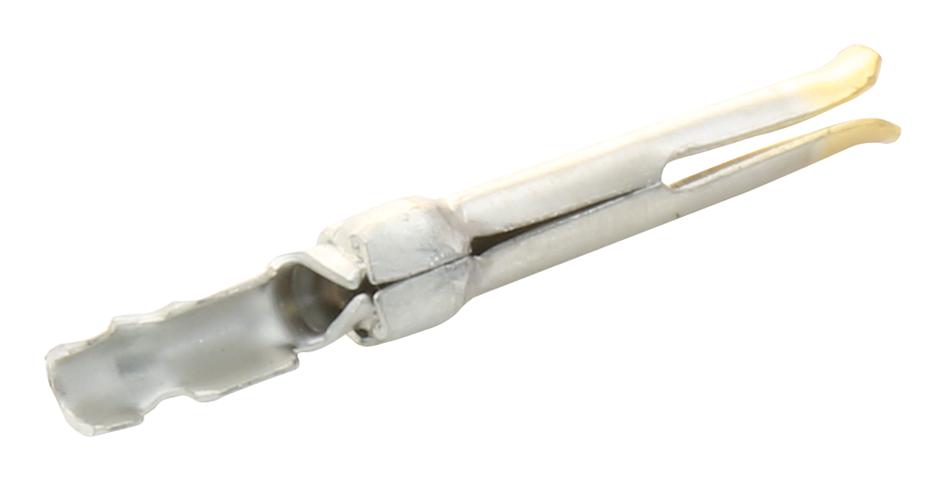

AMPHENOL COMMUNICATIONS SOLUTIONS 8656351064LF Crimp Socket Contact
The crimp socket contact is made from phosphor bronze with a thickness of 0.20 mm, featuring a bright tin over nickel finish on termination for corrosion resistance. It supports wire ranges from 24 to 28 AWG with a maximum outer diameter insulator of 1.02 mm. Capable of handling up to 3 amps when crimped to 24 AWG, 2 amps at 26 AWG, and 1 amp at 28 AWG after five insertions, it provides reliable electrical connectivity. The contact retains at least 5 pounds axial load, ensuring durability in various industrial applications. Packaged in boxes of 500 contacts, it adheres to RoHS directives and standard termination plating specifications of 2um nickel and 2um tin.
AMPHENOL COMMUNICATIONS SOLUTIONS 8656351064LF Crimp Socket Contact Specifications:
- Material: Phosphor bronze, thickness 0.20 mm
- Finish on contact area: see table
- Finish on termination: Bright tin over nickel
- Wire Range: 24 to 28 AWG
- Max Outer Diameter of Wire Insulator: 1.02 mm
- Current Capacity: 3 Amps at 24 AWG, 2 Amps at 26 AWG, 1 Amp at 28 AWG (after 5 insertions)
- Contact Retention: Minimum 5 pounds axial load after 5 insertions
- Crimped Insulation Support Height: Max 1.78 mm for 24 AWG
- Packaging: Box of 500 contacts
- RoHS Compliant: Yes
- Termination Plating: 2um Nickel, 2um Sn
- Max Insertion Life: 5 cycles
- Surface Tolerance Standard: ISO 1101
- Product Code: 8656351064LF
Buy the FCI 8656351064LF – Reliable Crimp Socket for Industrial Applications
Order the FCI crimp socket contact in bulk online to ensure high-quality, reliable electrical connections for your industrial projects. Crafted from durable phosphor bronze with a protective tin over nickel finish, it supports wires from 24 to 28 AWG, handling currents up to 3 amps at 24 AWG. Designed for easy crimping and repeated insertions, each contact retains at least 5 pounds of axial load. Packaged in convenient boxes of 500, these contacts meet RoHS regulations and standard plating specifications, offering excellent value and performance for manufacturing and maintenance tasks.
Buy FCI 8656351064LF now and experience unmatched reliability and performance for your industrial crimping needs.
