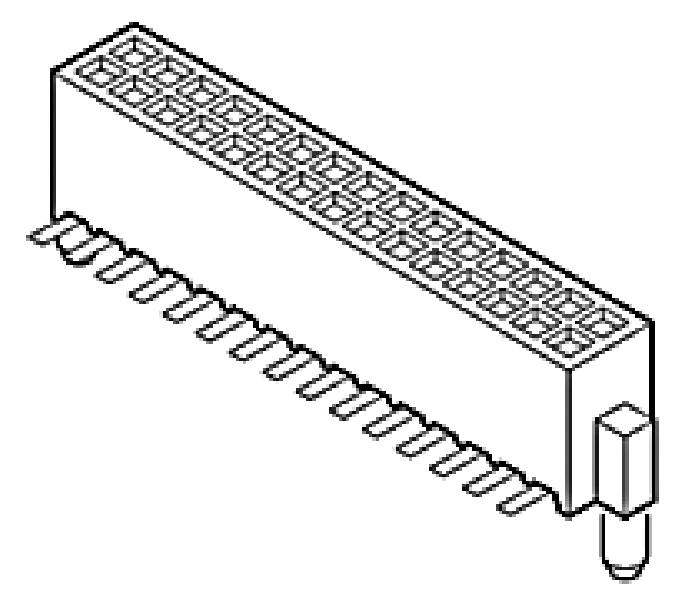

AMPHENOL COMMUNICATIONS SOLUTIONS 87024610LF Rib-Cage Connectors
The RIB-CAGE™ board-to-wire connectors offer high reliability and durability in extreme conditions with a 1.27mm pitch system. Designed for PCB and FPC connectors, they feature multi-point gold-plated contacts, polarization to prevent mis-mating, and multiple stacking options for flexible designs. Suitable for rugged applications like military, security, and outdoor measurement devices, these connectors meet MIL-STD-202 and IEC standards. They are lead-free, RoHS compliant, and available in various sizes with surface-mount or through-hole configurations, ensuring optimal performance in shock, vibration, and environmental extremes.
AMPHENOL COMMUNICATIONS SOLUTIONS 87024610LF Rib-Cage Connectors Specifications:
- Pitch: 1.27mm (0.050in.)
- Contact Material: Copper alloy, phosphor bronze
- Contact Plating: 301 gold over nickel, 1001 tin over nickel
- Housing: Glass-filled thermoplastic, UL94V-0, black or natural
- Temperature Range: -55°C to 130°C
- Contact Resistance: 20mΩ max. initial, 25mΩ after environmental test
- Current Rating: 1.0A DC per contact
- Insulation Resistance: 50,000 MΩ min.
- Withstanding Voltage: 800V AC RMS
- Capacitance: 1.0pF max.
- Shock: 50g 11ms half sine
- Vibration: +/- 20g, 10–2000Hz
- Contact Durability: 200 mating cycles
- Compliance: MIL-STD-202 Method 204, IEC 60512
- RoHS: Compliant
- Environmental: -55°C to 130°C, lead-free
Buy the Fci Series Rib-Cage Connectors: 87024610LF
Enhance your electronic assemblies with Rib-Cage connectors that deliver superior reliability in high-vibration, shock-prone environments. Featuring gold-plated contacts and multiple configurations, these connectors are perfect for military, outdoor, and security applications. Their RoHS compliance and lead-free design meet environmental standards, while versatile mounting options provide easy integration into your designs. Whether for PCB or FPC connections, order your Rib-Cage connectors online today to ensure robust, dependable performance in demanding operational conditions.
Order your Fci Series Rib-Cage connectors today and ensure your projects benefit from reliable, high-performance PCB connections in extreme conditions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87024610LF?
You can click on the BUY or RFQ button to purchase 87024610LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87024610LF?
You can download the 87024610LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87024610LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
