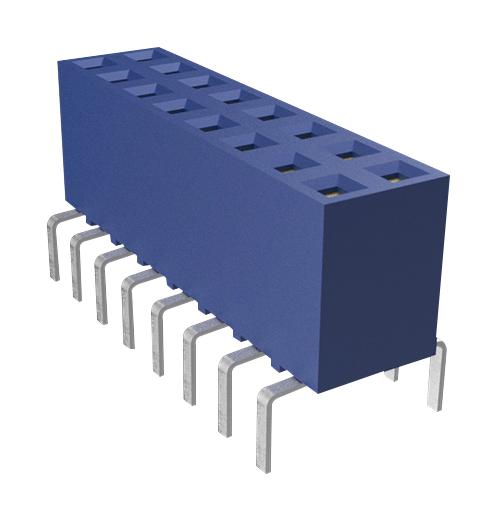

AMPHENOL COMMUNICATIONS SOLUTIONS 87606804LF Dubox Shunts
Amphenol's Dubox Shunts are robust board-to-board connectors designed for reliable signal transmission. Their dual-beam contact design ensures low insertion force and enhanced durability. The slotted cutout in the low-profile housing simplifies electrical testing, while the ability to stack side-by-side and end-to-end provides flexibility in design. These connectors are ideal for applications requiring compact size and dependable performance in industrial environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606804LF Dubox Shunts Specifications:
- Housing: High temperature, black thermoplastic
- Flammability rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or tin over 1.27μm (50μin.) nickel
- File no.: E66906
- File no. LR: 46923
- Current rating: 2.5A max. per contact
- Insulation resistance: 50,000MΩ min
- Contact resistance: 15MΩ max. initial, 20MΩ max. after environmental tests
- Dielectric withstanding voltage: 800V
- Operating temperature range: -65°C to +125°C
- Mating cycles (durability) - Gold: 50
- Mating cycles (durability) - Tin: 25
- Insertion force (gold contact): 450gf max.
- Insertion force (tin-lead contact): 500gf max.
- Withdrawal force (gold contact): 30gf min.
- Withdrawal force (tin-lead contact): 30gf min.
- Insertion depth: 4.85 mm (.191in.) min.
- Wipe: 3.81 mm (.015in.)
Buy the 87606-804LF AMPHENOL COMMUNICATIONS SOLUTIONS Dubox Shunts | myMectronic
Securely purchase the AMPHENOL COMMUNICATIONS SOLUTIONS 87606-804LF Dubox Shunts online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606804LF?
You can click on the BUY or RFQ button to purchase 87606804LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606804LF?
You can download the 87606804LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606804LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
