AMPHENOL COMMUNICATIONS SOLUTIONS 89096112LF Backplane Connectors
Metral® backplane connectors support high power and coaxial applications in data, industrial, medical, and telecom markets. They are modular, scalable, and end-to-end stackable with signal modules, offering different pin configurations, current ratings of 3 to 40A, and various termination options like press-fit, solder-to-board, and pin-in-paste. Designed in accordance with IEC 61076-4-104 and Telcordia GR-1217-CORE, these connectors feature high-temperature thermoplastic housings and copper alloy contacts for durability and electrical reliability in demanding environments. Suitable for RPU applications, they include power and mini coax connectors with impedance options of 50Ω and 75Ω, supporting voltages up to 250V and operational temperatures from -65°C to +165°C.
AMPHENOL COMMUNICATIONS SOLUTIONS 89096112LF Backplane Connectors Specifications:
- Housing: High temperature thermoplastic; UL 94V-0
- Contact Material: Copper Alloy
- Plating: Performance-based plating
- Electrical Power: Current rating 3-40A, Withstanding Voltage 1000V rms
- Electrical Coax: Impedance 50Ω and 75Ω, Operating Voltage 250V
- Electrical Insulation Resistance: Power 5000MQ min, Coax 3000MQ min
- Environmental Operating Temperature: Power -55°C to +125°C, Coax -65°C to +165°C
- Mechanical Mating Force: Power 1.5 N max. per pin, Coax 0.9N, Unmating Force: Power 0.30 N min. per pin, Coax 0.9N
- Standards: IEC 61076-4-104, Telcordia GR-1217-CORE

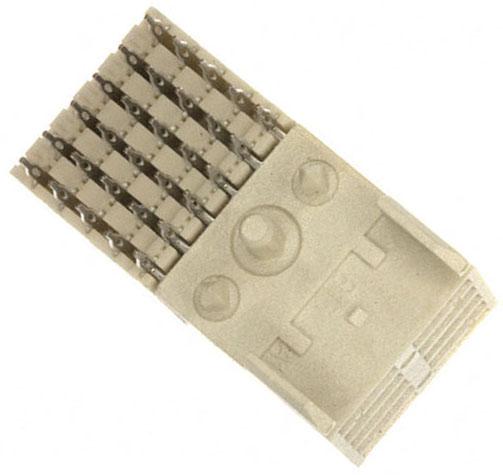

Buy the Buy METRAL® Power, High Power and Coax Connectors Part Number 89096112LF Online
Order the METRAL® backplane connectors today to enhance your data, industrial, medical, and telecom equipment with scalable, modular high power and coax solutions. These connectors support current ratings up to 40A, feature versatile termination options like press-fit, solder-to-board, and pin-in-paste, and are designed to meet stringent international standards. With robust materials including thermoplastic housings and copper alloy contacts, they deliver excellent electrical performance and durability in extreme temperatures. Perfect for applications requiring reliable, high-current connections in a compact footprint.
Get METRAL® backplane connectors today—built for high current applications and long-lasting reliability in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89096112LF?
You can click on the BUY or RFQ button to purchase 89096112LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89096112LF?
You can download the 89096112LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89096112LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
