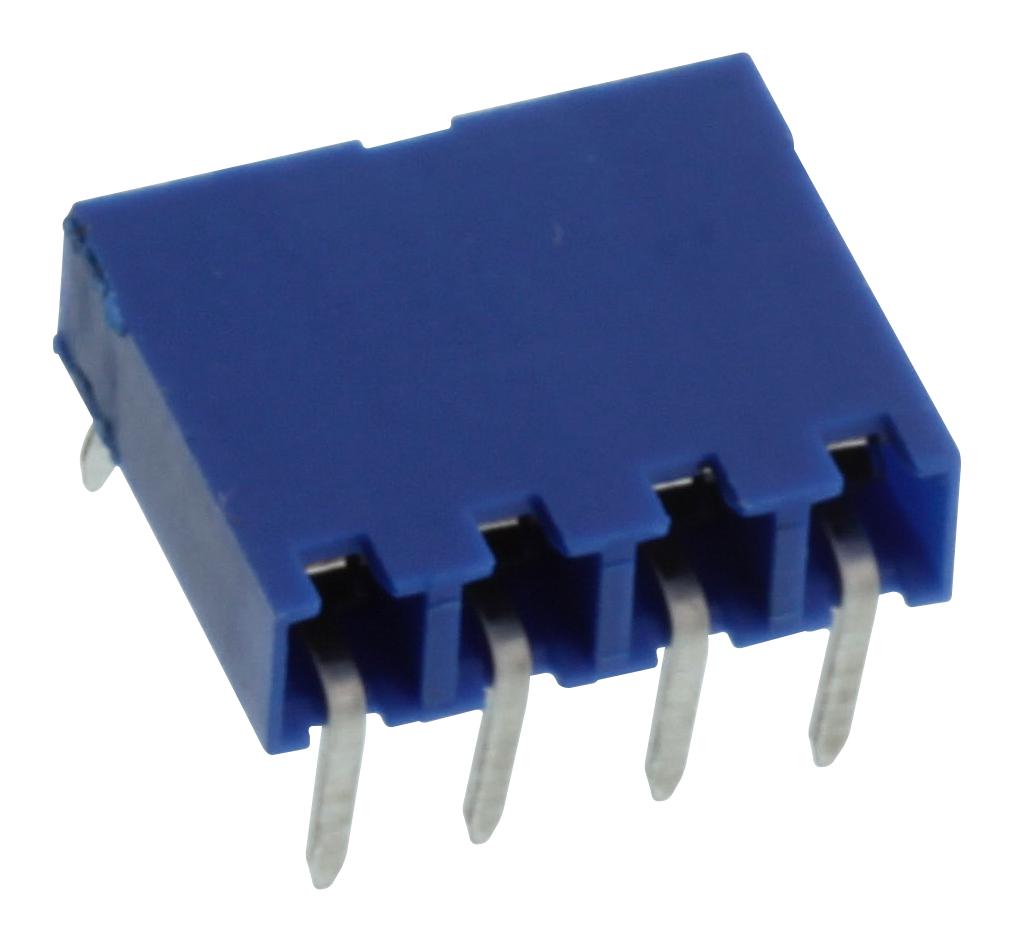

AMPHENOL COMMUNICATIONS SOLUTIONS 89882304LF Board Connectors
The product is a high-reliability, low-profile vertical and horizontal receptacle designed for board-to-board connections. Featuring dual-beam contacts for reduced insertion force, it is compatible with wave soldering and IR reflow processes. Made with glass-filled thermoplastic polyester housing rated UL94V-0, it supports current ratings of up to 3A per contact, with an operating temperature range of -65°C to +125°C. The connectors are RoHS compliant and suitable for applications requiring signal protection, coplanarity, and robust mechanical durability through 200 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 89882304LF Board Connectors Specifications:
- Housing: Glass-filled thermoplastic polyester, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over 1.27μm nickel
- Current Rating: 3A DC max. per contact, 2A DC max. for fully energized connector
- Insulation Resistance: 1x 10^6 MΩ min.
- Contact Resistance: 15 MΩ initial, 20 MΩ after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N (150gf) max. for gold contacts
- Withdrawal Force: 0.30 N (30gf) min. for gold contacts
- Insertion Depth: 3.6mm to 6.81mm (top entry), 6mm min. (bottom entry); provides 0.381mm wipe
- Environmental Resistance: RoHS compliant, suitable for wave soldering, vapor-phase, IR reflow
- Dimensions vary depending on model, typically supporting 2 to 36 positions for receptacles
- Certification: RoHS compliant according to EU Directive 2002/95/IEC
Buy the FCI 89882304LF – Reliable Board-to-Board Connectors for Industrial Applications
Purchase the FCI 89882304LF board-to-board connectors online today. These connectors feature dual-beam contacts for reliable connectivity, low insertion force, and excellent signal protection. Made with UL94V-0 rated thermoplastic housing, they support current up to 3A per contact and withstand temperatures from -65°C to +125°C. Compatible with wave soldering and IR reflow processes, they are RoHS compliant, ensuring safety and environmental standards. Perfect for industrial electronics, automation, and manufacturing systems requiring robust, long-lasting connections.
Get FCI 89882304LF today—designed for high durability, low insertion force, and easy assembly in industrial electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 89882304LF?
You can click on the BUY or RFQ button to purchase 89882304LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 89882304LF?
You can download the 89882304LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 89882304LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
