AMPHENOL COMMUNICATIONS SOLUTIONS B4061B7L111260E100 Floating Board-to-Board Connector
The Amphenol ICC B406/B407/B410 series are high-speed, 0.80mm pitch floating board-to-board connectors designed to support stack heights up to 23mm. Featuring a floating range of +0.50mm in X, Y, and Z directions, they tolerate misalignments and vibrations, ensuring reliable electrical contact at data rates up to 2.5Gb/s. Made with high-temperature thermoplastic housing and gold-plated contacts, these connectors are suited for demanding applications like automotive, industrial, and communication equipment, operating across -40°C to +105°C.
AMPHENOL COMMUNICATIONS SOLUTIONS B4061B7L111260E100 Floating Board-to-Board Connector Specifications:
- Housing: LCP, black (UL94V-0)
- Cap: LCP, natural (UL94V-0)
- Contact Material: Phosphor bronze, 0.15mm thick
- Plating: 15k gold on contacts
- Anchor-plate: Brass, 0.20mm or 0.30mm thickness
- Voltage Rating: 50V AC/DC
- Current Rating: 0.5A
- Contact Resistance: 80mΩ max.
- Insulation Resistance: 500MΩ initial; 100MΩ after testing
- Dielectric Withstanding Voltage: No short or breakdown at 250VAC, 2mA, Imax
- Mechanical Durability: 30 mating cycles
- Operating Temperature: -40°C to +105°C
- Housing Material: LCP, UL94V-0
- Packaging: Tape & Reel
- Certifications: UL listed (E478701), RoHS compliant

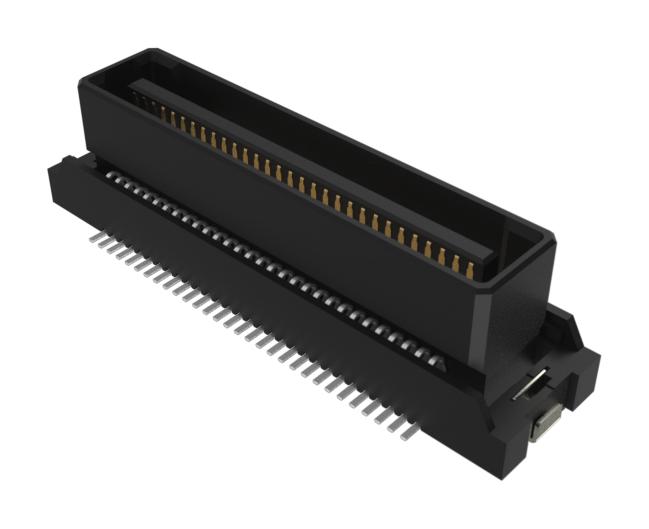

Buy the Amphenol Series B406/B407/B410 High-Speed Board-to-Board Connectors: B406-1B7L1-11260-E100
Enhance your electronic assembly with Amphenol's high-quality floating board-to-board connectors. Designed for high-speed data transfer up to 2.5Gb/s, these connectors support stack heights up to 23mm and offer a floating range of +0.50mm in X, Y, and Z directions. Made from high-temperature thermoplastic with gold-plated contacts, they deliver exceptional vibration resistance and reliable performance in demanding environments. Suitable for automotive, industrial, and communication applications, order online now to ensure your projects meet the highest standards of quality and performance.
Order your Amphenol Series B406/B407/B410 high-speed floating board-to-board connector today and ensure reliable, vibration-resistant data transmission for your projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS B4061B7L111260E100?
You can click on the BUY or RFQ button to purchase B4061B7L111260E100 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part B4061B7L111260E100?
You can download the B4061B7L111260E100 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of B4061B7L111260E100?
AMPHENOL COMMUNICATIONS SOLUTIONS
