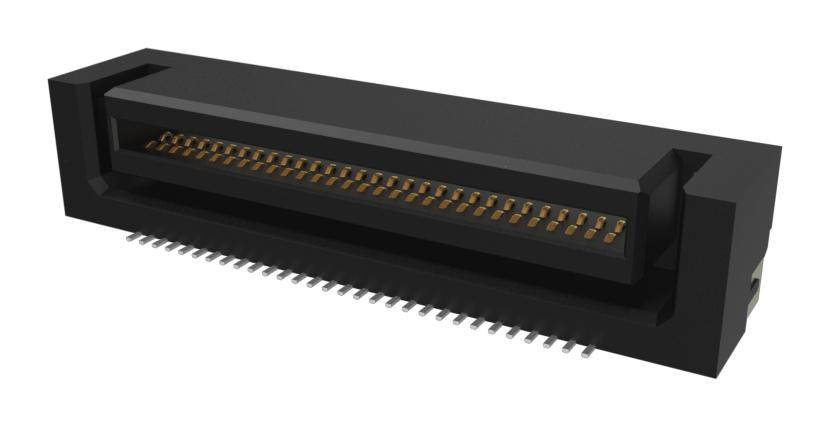

AMPHENOL COMMUNICATIONS SOLUTIONS B4071B7L111260E100 Floating Board-to-Board Connector
The 0.80mm pitch floating board-to-board connectors series from Amphenol ICC, including models B406, B407, and B410, are designed for high-speed data transmission up to 2.5Gb/s and support stack heights up to 23mm. These connectors feature a floating mechanism of +0.50mm in X, Y, and Z directions, providing excellent misalignment tolerance during surface mounting and mating. The series includes vertical and right-angle receptacles made of UL94V-0 LCP housing, with gold-plated contacts for reliable electrical performance. Suitable for various industrial, automotive, and telecommunications applications, they are rated for -40°C to +105°C operating temperatures and are UL and RoHS certified. Durability is rated at 30 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS B4071B7L111260E100 Floating Board-to-Board Connector Specifications:
- Pitch: 0.80mm
- Stack height support: up to 23mm
- Floating range: +0.50mm in X, Y, and Z directions
- Vibration resistance: yes
- Data rate: up to 2.5Gb/s
- Housing Material: LCP UL94V-0
- Contact Material: Phosphor bronze
- Contact Plating: 15μm gold
- Current Rating: 0.5A
- Voltage Rating: 50V AC/DC
- Contact Resistance: 80mΩ max
- Insulation Resistance: 500MΩ max.
- Dielectric Withstanding Voltage: 250VAC
- Operating Temperature: -40°C to +105°C
- Durability: 30 mating cycles
- Packaging: Tape & Reel
- Certifications: UL E478701, RoHS compliant
Buy the Amphenol B4071B7L1 – Reliable Floating Board-to-Board Connectors for Industrial Applications
Enhance your electrical connections with Amphenol ICC’s floating board-to-board connectors. Designed for high-speed data transmission up to 2.5Gb/s, these connectors are engineered for reliable performance in demanding environments. Their floating mechanism offers +0.50mm flexibility in X, Y, and Z directions, ensuring excellent misalignment tolerance and vibration resistance. Made from UL94V-0 LCP with gold-plated contacts, they operate efficiently from -40°C to +105°C. Perfect for industrial, automotive, and telecommunications applications, with UL and RoHS certifications, and rated for 30 mating cycles, they represent a durable and flexible connectivity solution.
Get Amphenol B4071B7L1 today—built for precision, high-speed performance, and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS B4071B7L111260E100?
You can click on the BUY or RFQ button to purchase B4071B7L111260E100 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part B4071B7L111260E100?
You can download the B4071B7L111260E100 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of B4071B7L111260E100?
AMPHENOL COMMUNICATIONS SOLUTIONS
