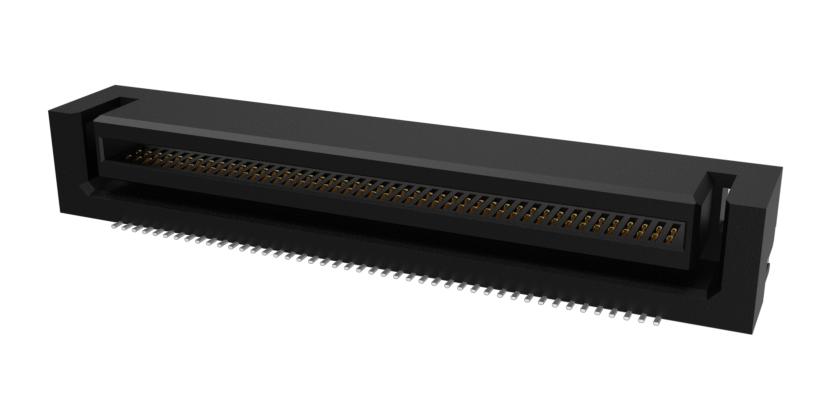

AMPHENOL COMMUNICATIONS SOLUTIONS B4071B7L111290E100 High-Speed Board-to-Board Connector
The 0.80mm Pitch Floating Board-to-Board connectors series offers high-speed data transfer up to 2.5Gb/s, vibration resistance, and misalignment tolerance, suitable for various electronic modules and industrial applications. Designed with a floating range of +0.50mm in X, Y, and Z directions, these connectors ensure reliable contact stability under surface mounting and vibrational conditions. Made with UL94V-0 rated thermoplastic housing, gold-plated contacts, and brass anchor-plates, they support temperature ranges from -40°C to +105°C for demanding environments. Various configurations include vertical and right-angle receptacles with diverse pin counts from 60 to 120 positions.
AMPHENOL COMMUNICATIONS SOLUTIONS B4071B7L111290E100 High-Speed Board-to-Board Connector Specifications:
- Housing: LCP, black color (UL94V-0)
- Cap: LCP, natural color (UL94V-0)
- Contact Material: Phosphor bronze
- Plating: 15pin gold plated on contact
- Voltage Rating: 50V AC/DC
- Current Rating: 0.5A
- Contact Resistance: 80MQ max
- Insulation Resistance: 500MQ max (initial), 100MQ max (after tests)
- Dielectric Withstanding Voltage: No short or breakdown at 250VAC, 2mA
- Operating Temperature Range: -40°C to +105°C
- Durability: 30 mating cycles
- Insertion Force: 0.39N/pin max
- Withdrawal Force: 0.05N/pin min
- Terminal Retention Force: 2.9N/terminal min
- Anchor-plate Retention Force: 2.9N/terminal min
- Packaging: Tape & Reel
- Certifications: UL file number E478701, ROHS compliant
- Mechanical: Supports stack height up to 23mm and position counts from 30 to 120
- Supports high-speed data up to 2.5Gb/s, designed for vibration resistance and misalignment tolerance
Buy the Amphenol B4071B7L1 – Reliable High-Speed Board-to-Board Connectors for Industrial Applications
Experience high-performance, vibration-resistant, and misalignment-tolerant connectivity with the Amphenol B4071B7L1 floating board-to-board connector series. Perfect for industrial, automotive, and consumer electronics, these connectors support data rates up to 2.5Gb/s, operate reliably from -40°C to +105°C, and feature UL94V-0 rated thermoplastic housing with gold-plated contacts. Available in various configurations with up to 120 positions, they guarantee robust performance, easy installation, and long-lasting durability for demanding electronic applications. Order online now for fast delivery.
Order your Amphenol Series B4071B7L1 0.80mm floating board-to-board connector today and ensure reliable connectivity in your high-speed electronic projects.
