AMPHENOL COMMUNICATIONS SOLUTIONS CEE009800140311 High-Speed PCIe Connector
The Cool Edge 1.00mm PCle® connectors are high-speed, space-saving board-to-board connectors supporting PCIe® Gen 4 and 5 with speeds up to 32GT/s. Designed with a slim profile, they facilitate high-density applications on motherboards, featuring conductive plastic for enhanced signal integrity. Suitable for PCIe® slots of x8, x16, and x24, these connectors support up to 1.1A per power pin and 0.7A per signal pin. They offer easy visual inspection, durability for 200 mating cycles, and compatibility with various applications, making them ideal for high-end computing, networking, and server systems.
AMPHENOL COMMUNICATIONS SOLUTIONS CEE009800140311 High-Speed PCIe Connector Specifications:
- Signal Pin Pitch: 1.00mm
- Supports speeds: 16GT/s, 25GT/s, 32GT/s
- Current Rating: 1.1A per power pin, 0.7A per signal pin
- Housing Material: High-temperature thermoplastic (UL 94V-0)
- Contact Material: Copper alloy, gold over nickel finish
- Mating Cycles: 200
- Dielectric Withstanding Voltage: 500V
- Temperature Life: 105+2°C for 240 hours
- Thermal Shock: 10 cycles between -55°C and +85°C
- Humidity Resistance: 24 cycles at high humidity levels
- Connector Height: 9.60mm, Width: 5.80mm, Length: 95mm
- Supports 1.60mm thick mating boards
- Tray packaging for assembly
- Compatible with PCIe® x8, x16, x24 slots

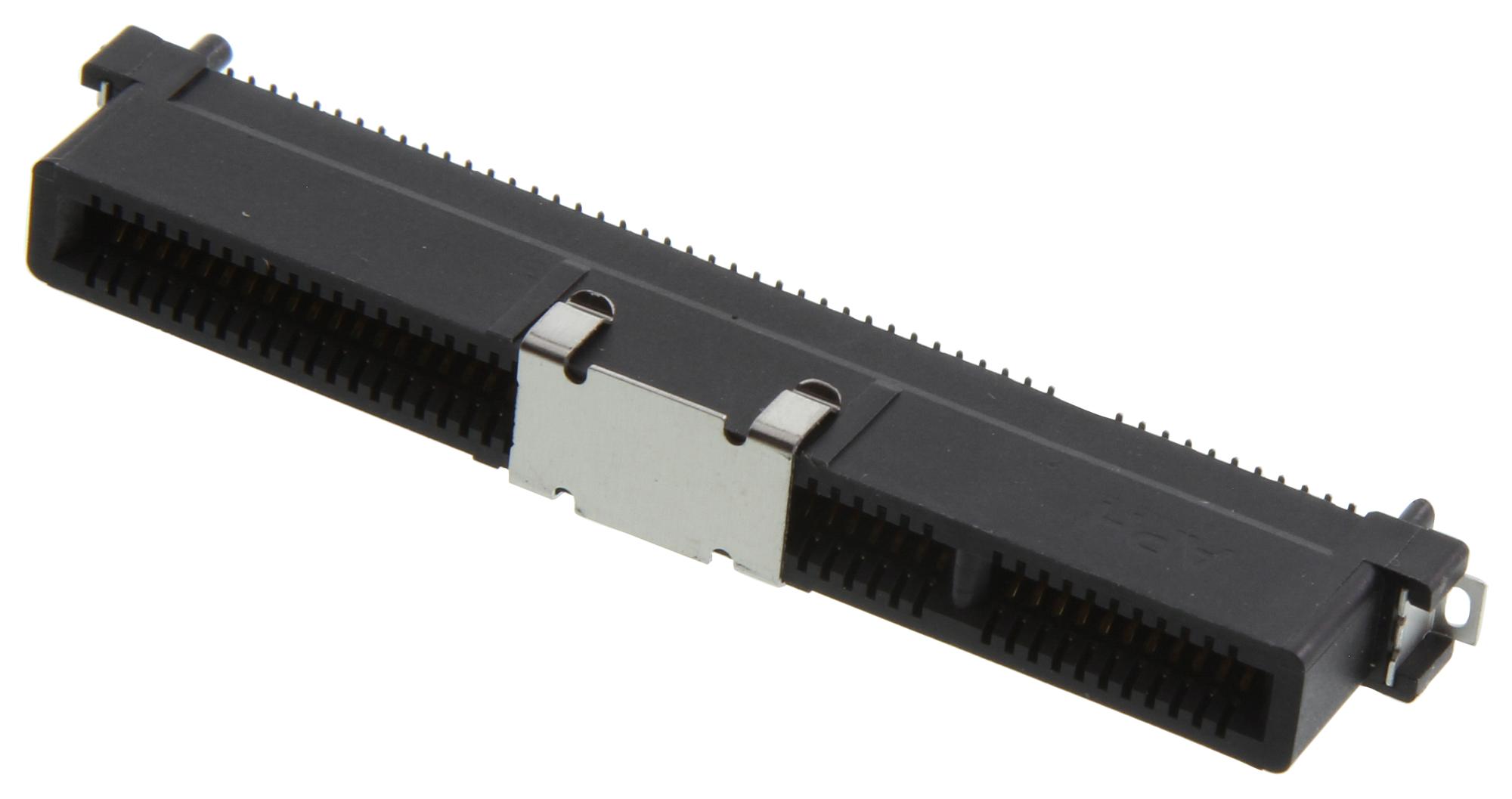

Buy the Amphenol Series Cool Edge PCIe Connectors: CEE009800140311
Enhance your electronic assemblies with the high-speed Cool Edge PCIe connector by Amphenol, supporting up to 32GT/s for PCIe® Gen 4 and 5. Its slim profile and conductive plastic base improve signal integrity and save valuable space on motherboards. Designed for board-to-board applications, it features reliable contact resistance, 200 mating cycles durability, and easy AOI inspection. Ideal for high-end computing, networking, and server systems, this connector ensures superior performance, reliability, and compatibility across various applications and industry standards.
Buy Amphenol Cool Edge PCIe connectors now and experience unmatched high-speed performance and space-saving design for your advanced motherboard applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS CEE009800140311?
You can click on the BUY or RFQ button to purchase CEE009800140311 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part CEE009800140311?
You can download the CEE009800140311 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of CEE009800140311?
AMPHENOL COMMUNICATIONS SOLUTIONS
