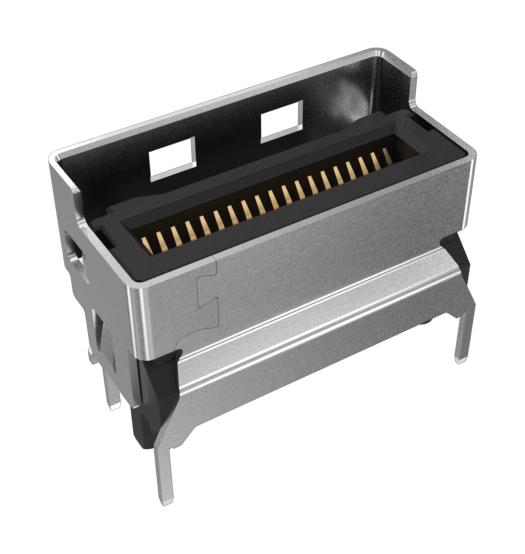

AMPHENOL COMMUNICATIONS SOLUTIONS G42V11332HR Mini Cool Edge Connector
The G42V11332HR is a 0.60mm pitch Mini Cool Edge I/O connector featuring a slim form factor design. It supports high-speed signal transmission up to PCIe® Gen 4 and allows for longer signal path lengths while maintaining signal integrity compared to traditional PCB routing. The connector is suitable for both cable and card edge applications, offering a vertical configuration with a high-temperature thermoplastic housing. It is constructed with copper alloy contacts that are gold-plated for durability and reliable connectivity.
AMPHENOL COMMUNICATIONS SOLUTIONS G42V11332HR Mini Cool Edge Connector Specifications:
- Pitch: 0.60mm
- Configuration: Vertical and right angle
- Supports: PCIe Gen 4 and Gen 5, up to 56Gb/s PAM4
- Transmission Distance: Over 1.0 meter
- Contact Material: Copper alloy with gold over nickel finish
- Housing Material: High-temperature thermoplastic (UL 94V-0)
- Electrical Resistance: 30mΩ max.
- Dielectric Voltage: 300V DC
- Durability: 250 mating cycles
- Mating Force: 0.6N per pin max.
- Unmating Force: 0.06N per pin min.
- Contact Resistance: 15μΩ to 30μΩ
- Certification: UL Listed
- Environmental Resistance: Humidity, thermal shock, temperature life
Buy the Amphenol Series Mini Cool Edge 10: G42V11332HR
Order the Mini Cool Edge Connector online now to experience a high-speed, reliable, and scalable interconnect solution designed for compact data center applications. This connector offers excellent signal integrity up to PCIe Gen 4 and Gen 5, with a slim 0.60mm pitch, supporting both cable and card edge configurations. Its robust construction and certification ensure long-term durability. Enjoy fast delivery, easy installation, and the flexibility to support modular, scalable systems for demanding high-speed data environments. Purchase today to enhance your system's performance.
Get Amphenol G42V11332HR today—built for precision and long-lasting durability in high-speed interconnect solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G42V11332HR?
You can click on the BUY or RFQ button to purchase G42V11332HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G42V11332HR?
You can download the G42V11332HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G42V11332HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
