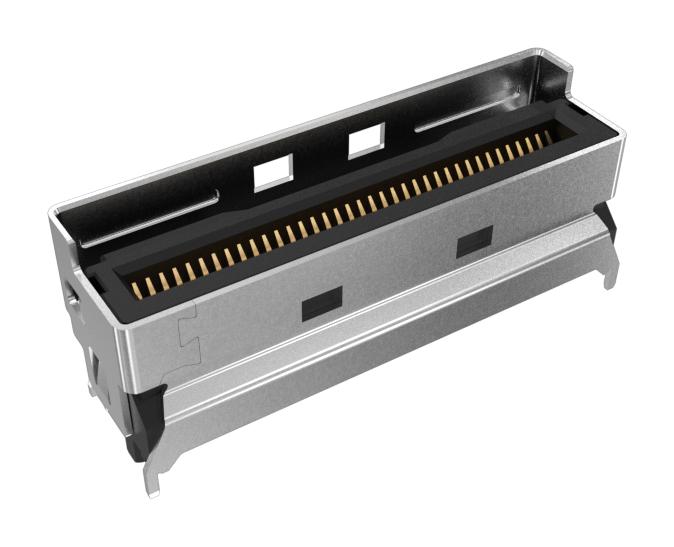

AMPHENOL COMMUNICATIONS SOLUTIONS G42V12352HR Mini Cool Edge 10 Connector
The Mini Cool Edge 10 connector offers a slim 0.60mm pitch design supporting high-speed data transmission up to 56G PAM4, PCIe® Gen 4/5. Its modular, scalable construction is ideal for compact data centers, extending transmission distances beyond conventional PCB routes while maintaining signal integrity. Made with durable materials such as copper alloy contacts with gold plating and high-temperature thermoplastic housing, it supports cable and edge card applications. Certified by UL, this connector ensures reliable operation through 250 mating cycles and excellent environmental resilience, making it perfect for networking, server, and high-end computing systems.
AMPHENOL COMMUNICATIONS SOLUTIONS G42V12352HR Mini Cool Edge 10 Connector Specifications:
- Pitch: 0.60mm
- Transmission Speed: Up to 56Gb/s PAM4, PCIe® Gen 4, PCIe® Gen 5
- Maximum Transmission Distance: Over 1.0 meter
- Materials: Copper alloy contacts, gold over nickel finish, high-temperature thermoplastic housing
- Electrical Resistance: 30mΩ max.
- Dielectric Withstanding Voltage: 300V DC
- Durability: 250 mating cycles
- Mating Force: 0.6N per pin max.
- Unmating Force: 0.06N per pin min.
- Certifications: UL Listed
- Environmental Resistance: EIA-364-31 humidity cycle, EIA-364-17 temperature life, EIA-364-32 thermal shock
Buy the Buy Amphenol Mini Cool Edge 10 Part Number G42V12352HR Online
Purchase the Amphenol Mini Cool Edge 10 connector online now to ensure your systems benefit from high-speed PCIe Gen 4/5 data transmission up to 56G PAM4. Its slim, 0.60mm pitch design allows for compact and scalable data center architectures, supporting cable and card edge configurations. Made with durable copper alloy contacts and high-temp thermoplastic housing, it guarantees reliable connectivity and environmental resistance. Ideal for networking, server, and high-performance computing markets, this connector provides scalable modularity, extended transmission distances, and long-term durability—perfect for modern high-speed applications.
Get Amphenol G42V12352HR today—built for high-speed signal integrity in compact, modular systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G42V12352HR?
You can click on the BUY or RFQ button to purchase G42V12352HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G42V12352HR?
You can download the G42V12352HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G42V12352HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
