AMPHENOL COMMUNICATIONS SOLUTIONS G98V14322HR Mini Cool Edge 10 Connector
The G98V14322HR is a 0.60mm pitch Mini Cool Edge IO connector designed for high-speed data transmission up to 56G PAM4 with 95Ω impedance. Its slim, compact structure allows for long signal paths, supporting both cable and card edge applications in vertical configurations. Made from high-temperature thermoplastic and copper alloy contacts with gold plating, it offers excellent durability, electrical performance, and reliable contact resistance. Certification includes UL approval, making it suitable for advanced data center, networking, server, and high-end computing systems requiring scalable, modular, and easy-to-repair interconnect solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS G98V14322HR Mini Cool Edge 10 Connector Specifications:
- Pitch: 0.60mm
- Impedance: 95Ω
- Electrical Performance: Signal transmission up to 56G PAM4, contact resistance 30mΩ max., dielectric withstand voltage 300V DC
- Material: Copper alloy contacts with gold over nickel finish, high-temperature thermoplastic housing (UL 94V-0)
- Mechanical Performance: 250 mating cycles, mating force 0.6N/pin max., unmating force 0.06N/pin min.
- Environmental Resistance: Subject to humidity cycles, temperature life testing at 105°C for 168 hours, thermal shock from -55°C to 85°C
- Certifications: UL Listed
- Packaging: Carrier tape, tape & reel options
- Connector Type: Vertical and right-angle configurations
- Pin Counts: 38, 74, 124, 50, 148, 84, 100 pins with sideband options
- Housing Material: High-temperature thermoplastic
- Contact Plating: Gold over nickel
- Seaing: Nickel-plated stainless steel cage

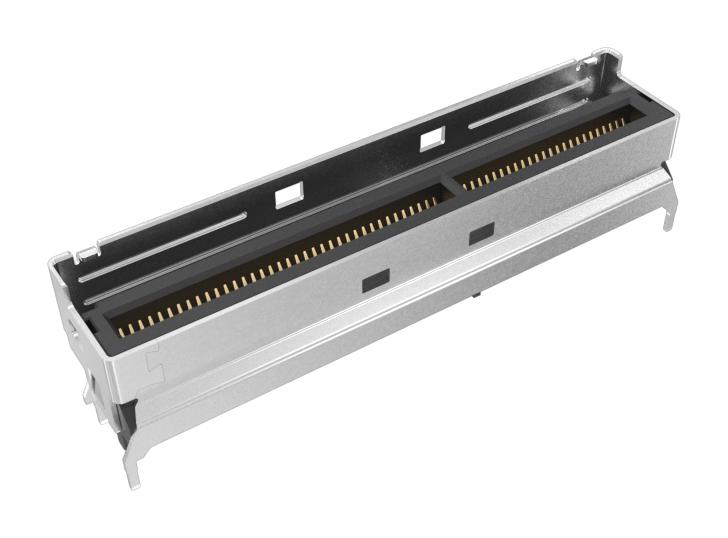

Buy the Amphenol Series Mini Cool Edge 10: G98V14322HR
Discover the advanced Mini Cool Edge 10 connector from Amphenol, engineered for high-speed data transmission up to 56G PAM4 with 95Ω impedance. Featuring a slim, 0.60mm pitch design, it supports both cable and card edge connections in vertical orientation, ideal for data centers, networking, servers, and high-end computing. Made from durable thermoplastic with gold-plated copper alloy contacts, it ensures excellent electrical performance, longevity, and reliability. Easy to integrate into modular systems, this connector offers scalability, cost-effectiveness, and certified UL safety for demanding applications.
Order your Amphenol Series Mini Cool Edge 10 G98V14322HR today and give your high-speed data projects the dependable connection they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G98V14322HR?
You can click on the BUY or RFQ button to purchase G98V14322HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G98V14322HR?
You can download the G98V14322HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G98V14322HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
