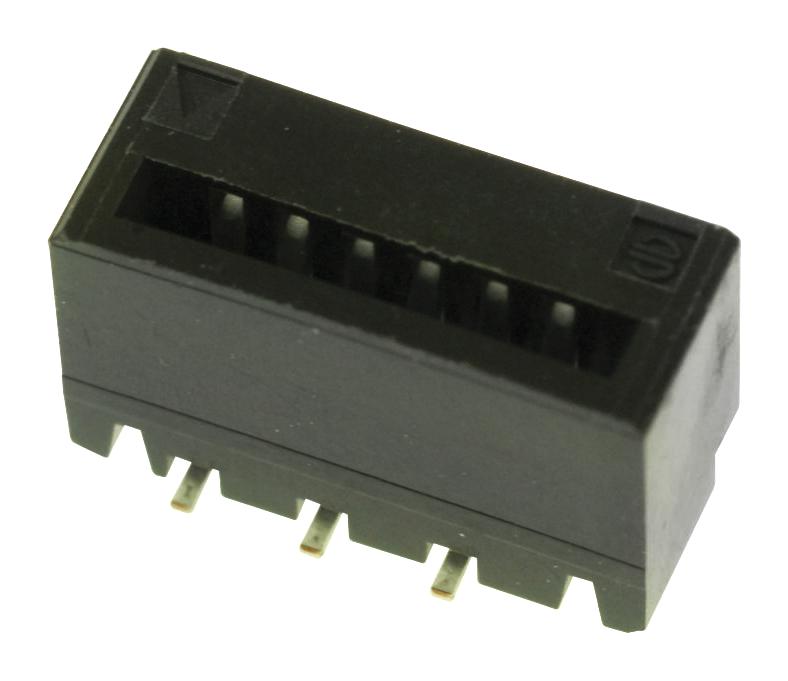

AMPHENOL COMMUNICATIONS SOLUTIONS HFW6R2STE1H1LF Flex Circuit Connector
The HFW series flexible circuit connectors feature a 1.00mm pitch, offering versatile right angle and vertical orientations suitable for surface mount and through hole terminations. Designed for FFC/FPC and CIC cables, these connectors provide reliable, economical connections in industrial control, instrumentation, retail, printer, and automotive multimedia applications. Available with lead-free matte tin and gold-flash plating options, the HFW series ensures compatibility with demanding environments. Their compact design, with heights of 3.9mm (right angle) and 5.9mm (vertical), complements high-density electronics requiring secure cable connections and visual mating confirmation.
AMPHENOL COMMUNICATIONS SOLUTIONS HFW6R2STE1H1LF Flex Circuit Connector Specifications:
- Pitch: 1.00mm
- Orientation: Right angle and vertical options
- Cable Termination: Non-ZIF
- Cable Type: FFC/FPC/CIC
- Board Termination: Surface mount (HFW series), Through Hole (HLW series)
- Contact Location: Top & Bottom (HFW), Top (HLW)
- Height: 1.9mm (HFW right angle), 5.3mm (HFW vertical), 3.9mm (HLW right angle), 5.9mm (HLW vertical), 2.7mm (SFW series right angle), 5.3mm (SFW series vertical), 4.0mm (SLW series right angle), 5.5mm (SLW series vertical)
- Lead-Free Plating: Matte Tin and Gold-flash options available
- Contact Material: Not specified but typically phosphor bronze or beryllium copper with plating
- Mounting: Surface mount and through hole
- Features: Visual mating confirmation, optional cable locks, reliable high-density connection
Buy the Buy Flex Circuit Connectors Series HFW Part Number HFW6R2STE1H1LF Online
Purchase the FCI Flex Circuit Connector series HFW today to benefit from versatile 1.00mm pitch connectors with surface mount and through hole options. Designed for high-density, reliable connections in industrial, automotive, and electronic devices, these connectors feature lead-free plating and visual mating confirmation. Easy to install with optional cable locks, these connectors guarantee a secure and efficient connection, making them perfect for applications requiring precise and durable flexible circuit terminations. Order now for fast delivery and premium quality.
Order your FCI Series HFW connector today and ensure a secure, high-quality cable connection for your demanding electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HFW6R2STE1H1LF?
You can click on the BUY or RFQ button to purchase HFW6R2STE1H1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HFW6R2STE1H1LF?
You can download the HFW6R2STE1H1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HFW6R2STE1H1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
