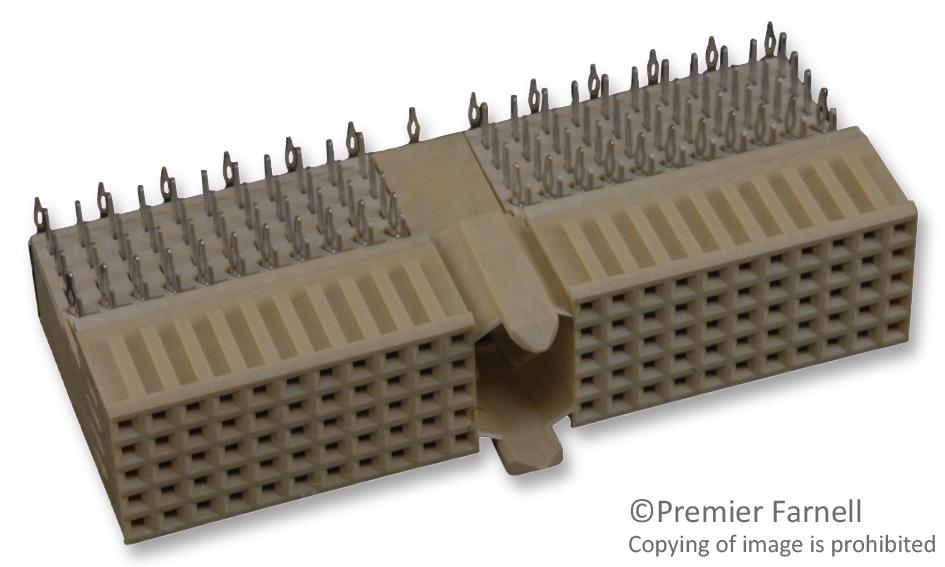

AMPHENOL COMMUNICATIONS SOLUTIONS HM2R10PA5108N9LF Compact PCI Backplane Connector
The Millipacs Compact PCI backplane connectors are reliable, modular interconnects designed for PCI bus architecture, compliant with IEC 61076-4-101 standards. Crafted from high-quality thermoplastic and copper alloy, these connectors support operating temperatures from -55°C to +125°C, with gold or palladium-nickel plating for durability. They offer a current capacity of 1.5 A at 20°C, test voltage of 750 Vrms, and feature various configuration options including vertical headers, right-angle receptacles, and shrouds, suitable for telecom, industrial automation, transportation, and military applications.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2R10PA5108N9LF Compact PCI Backplane Connector Specifications:
- Insulator Material: Thermoplastic UL-94V0 (Headers), High Temp Plastic (Receptacles)
- Contact Material: Copper Alloy
- Contact Plating: Gold or Palladium-Nickel on mating areas, Tin over Ni on press-fit
- Operating Current: 1.5 A at 20°C, 1.0 A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 10 MΩ min.
- Operating Temperature: -55°C to +125°C
- Mating Force: 0.75 N per contact
- Withdrawal Force: 0.15 N per contact
- Hertz Stress: 200 Kpsi min
- Misalignment: Longitudinal 2.0 mm, Transversal 2.5 mm
- Inclination: +2.0°
- Certifications: IEC 917, IEC 61076-4-101, DIN 43356, IEEE 1301, Telcordia GR-1217-CORE, UL, CSA
- Package: Tray
- Compatibility: Supports 32-bit and 64-bit PCI, VME extensions
Buy the Buy FCI Millipacs Compact PCI Part Number HM2R10PA5108N9LF Online
Purchase the FCI Millipacs Compact PCI backplane connector online for reliable, high-quality interconnection solutions. Designed for PCI bus systems, it features modularity, durability, and compliance with IEC standards. Ideal for telecom, industrial automation, transportation, and military applications, this connector supports high current flow, voltage capabilities, and temperature ranges from -55°C to +125°C. Its easy-to-assemble design includes vertical headers, right-angle receptacles, shrouds, all with gold or palladium-nickel plating for enhanced longevity. Quickly order online to ensure your project maintains quality and scalability.
Order your FCI Millipacs Compact PCI HM2R10PA5108N9LF today and ensure dependable, scalable backplane connections for your PCI-based systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2R10PA5108N9LF?
You can click on the BUY or RFQ button to purchase HM2R10PA5108N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2R10PA5108N9LF?
You can download the HM2R10PA5108N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2R10PA5108N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
