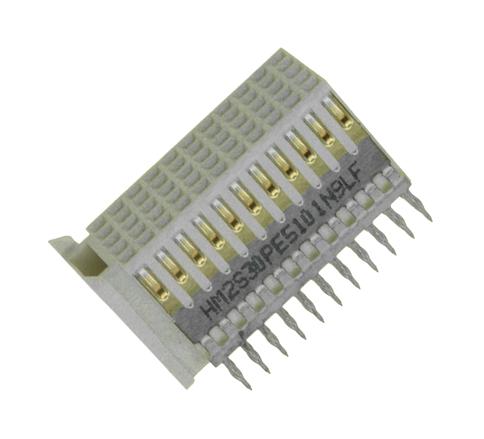

AMPHENOL COMMUNICATIONS SOLUTIONS HM2S30PE5101N9LF Backplane Connector
The Millipacs 2mm Hard Metric vertical receptacle connector offers a robust, scalable, and cost-effective interconnection solution designed for high-performance backplane, board-to-board, and cable-to-board applications across telecommunications, data centers, industrial, and medical sectors. Featuring a high-temperature polymer insulator, copper alloy contacts with gold/palladium nickel plating, and compliance with IEC standards, it supports operating temperatures from -55°C to +125°C, currents up to 1.5A, and test voltages of 750 Vrms. Its modular design permits easy customization, efficient signal routing, and reliable mating for demanding electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2S30PE5101N9LF Backplane Connector Specifications:
- Insulator material: High-Temperature polymer
- Contact material: Copper Alloy
- Contact plating: Gold/Palladium nickel on mating areas, Tin over Nickel on press-fit areas
- Operating current: 1.5A at 20°C, 1.0A at 70°C
- Test voltage: 750 Vrms
- Contact resistance: 20 mOhm max
- Insulation resistance: 10^10 Ohm min
- Operating temperature: -55°C to +125°C
- Mating force: 0.75 N max per contact
- Withdrawal force: 0.15 N min per contact
- Misalignment: Longitudinal + 2.0mm, Transversal + 2.5mm
- Inclination: +2.0°
- Number of mating cycles: 3-50 typical
- Size: 25mm to 50mm modular lengths
- Standards: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE
- Certifications: UL, CSA recognized
- Packaging: Tray
- Applications: Communication infrastructure, industrial control, medical equipment, data servers
Buy the Buy FCI Millipacs 2mm Hard Metric Vertical Receptacle Part Number HM2S30PE5101N9LF Online
Secure your electronic systems with the versatile and durable Millipacs 2mm Hard Metric vertical backplane connector. Designed for modular scalability and high-performance applications, it features robust copper alloy contacts with gold/palladium coating, high-temperature polymer insulation, and certified standards ensuring safety and reliability. Its flexible design supports up to 50 mating cycles, accommodating complex backplane assemblies in communications, industrial, and medical markets. Easy to install, maintain, and customized for various needs, this connector ensures optimal signal integrity, efficient routing, and long-term durability in demanding environments.
Get FCI Millipacs 2mm Hard Metric Vertical Receptacle HM2S30PE5101N9LF today—built for high reliability, precise fit, and long-lasting performance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2S30PE5101N9LF?
You can click on the BUY or RFQ button to purchase HM2S30PE5101N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2S30PE5101N9LF?
You can download the HM2S30PE5101N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2S30PE5101N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
