AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB13A automotive connector
This is an HSD+0 right-angle low-profile plug with SMT mounting, configured for northward connection. The connector features a high-temperature thermoplastic housing and dielectric material, with color coding that complies with automotive standards for easier installation. It ensures a high retention force between the die-casting and housing to prevent damage during incorrect release. The cable side is designed for crimp connections, suitable for automated assembly, and withstands reflow soldering temperatures. It has a maximum contact resistance of 20 milliohms per pin, and an insulation resistance exceeding 100 megaohms at 500 VDC. The dielectric withstand voltage is AC 250 Vrms for one minute. Its operating temperature range is from -40°C to +105°C. The connector is USCAR-2 and ISO/TS compliant, and rated low halogen, making it suitable for automotive applications.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB13A automotive connector Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Material: Low Halogen
- Insertion Force: 35N max.
- Extraction Force: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mΩ max. per pin
- Insulation Resistance: >100 MΩ at 500 VDC
- Dielectric Withstanding Voltage: AC 250 Vrms per minute
- Operating Temperature Range: -40°C to +105°C
- RoHS and ISO/TS compliant
- Reflow Soldering Resistance
- Color coding compliant with automotive standards
- Suitable for automated assembly and Pin-In-Paste (PIP) processes

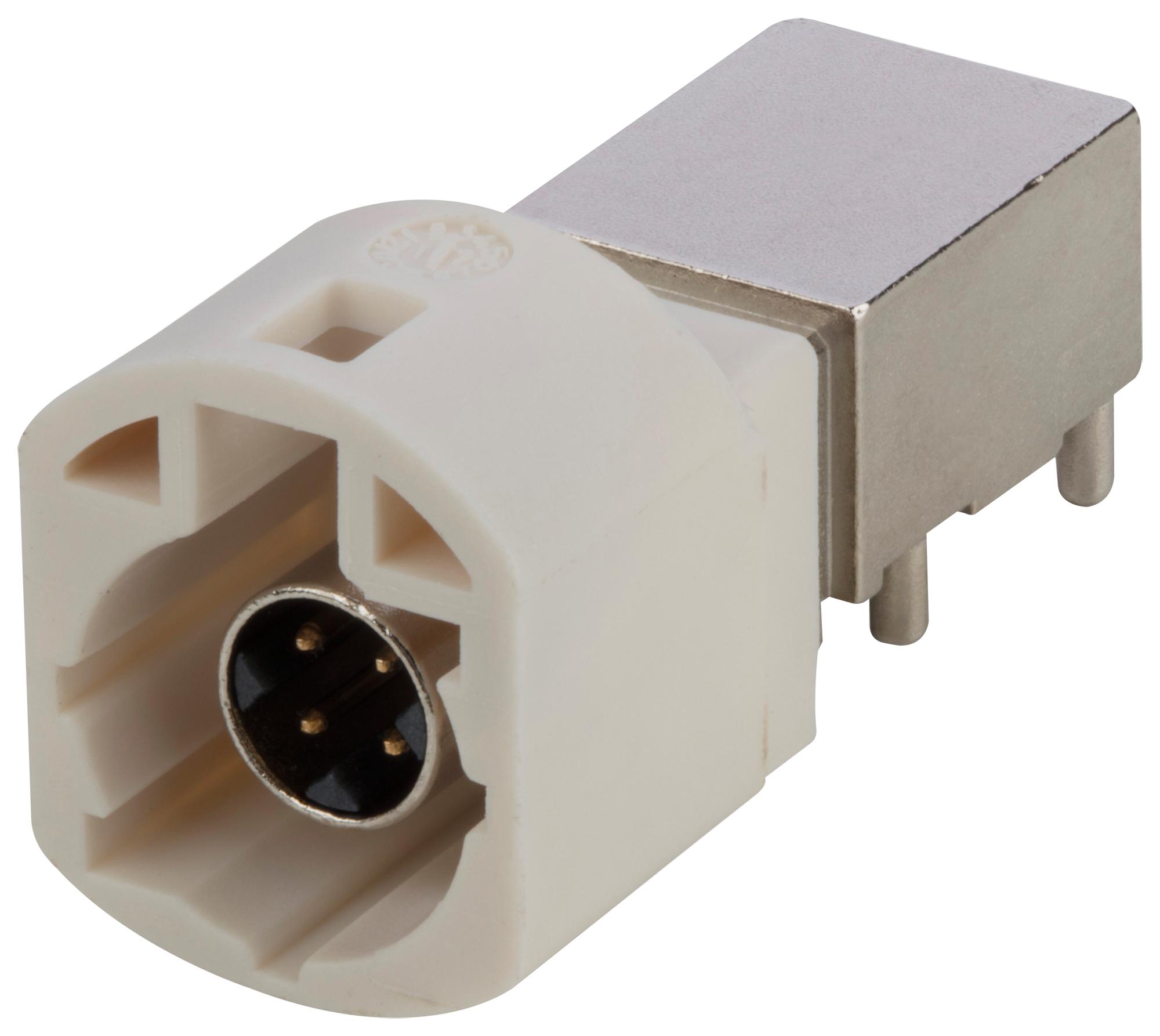

Buy the Buy Amphenol HSD Connector Part Number HSDNARPPCB13A Online
Purchase the Amphenol HSD connector online to ensure high-quality, automotive-grade performance. Designed for low-profile, right-angle applications, it features a durable thermoplastic housing and high retention force. Perfect for automated assembly with crimp connections, it withstands reflow soldering, operating from -40°C to +105°C. Its USCAR-2 and ISO/TS compliance guarantees reliability for critical vehicle systems like Advanced Driver Assistance Systems and in-vehicle infotainment. Buy now for a secure, high-performance connector solution tailored for automotive industry requirements.
Get Amphenol HSDNARPPCB13A today—built for precision, high-temperature performance, and reliable automotive connections.
