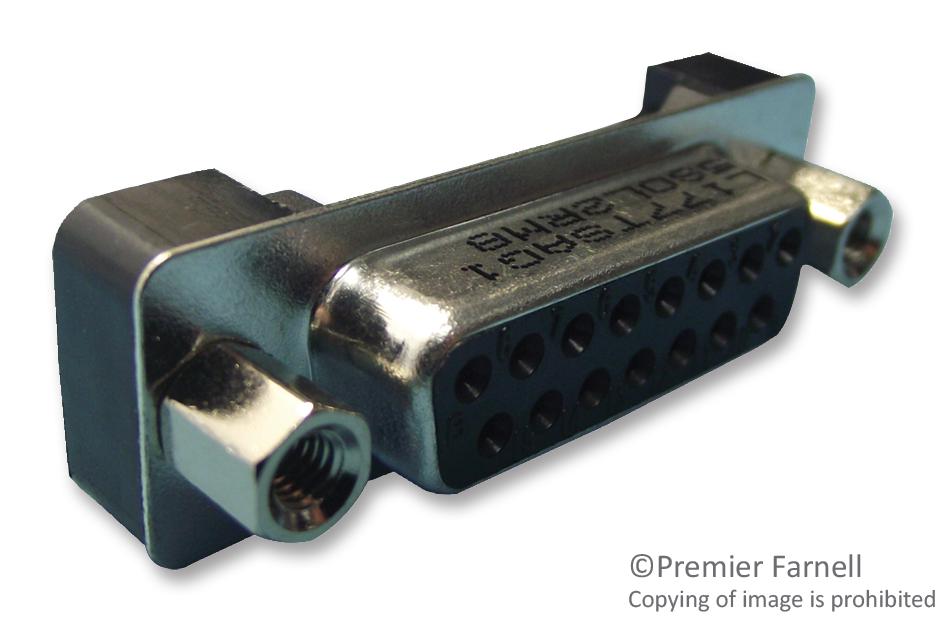

AMPHENOL COMMUNICATIONS SOLUTIONS L177TSAG15SOL2RM8 D-Sub Connector
The L177TSAG15SOL2RM8 is a high-reliability D-sub connector featuring stamped and formed contacts, steel shells with tin over nickel plating, and a glass-filled thermoplastic insulator. Designed for industrial applications, it provides a current rating of 5A, with a voltage rating of 600V AC/rms and withstand voltage of 1000V AC/rms. These connectors operate reliably within temperatures from -55°C to +125°C, with secure mating and unmating forces. Suitable for PCB mounting, they include options for front screwlock or boardlock configurations, and meet RoHS compliance for environmentally friendly manufacturing.
AMPHENOL COMMUNICATIONS SOLUTIONS L177TSAG15SOL2RM8 D-Sub Connector Specifications:
- Current rating: 5A
- Voltage rating: 600V AC/rms
- Withstand voltage: 1000V AC/rms for one minute
- Insulation resistance: 5000MQ
- Contact resistance: 10m max
- Operating temperature: -55°C to +125°C
- Shell material: Steel with tin over nickel plating
- Insulator: Glass-filled thermoplastic, UL 94V-0
- Contact material: Copper alloy with gold flash plating
- Mechanical: Mating force 2+ kg, Unmating force varies by number of contacts, e.g., 5.09 kg for 15 contacts
- Dimensions: Shell sizes and mounting options vary; typical dimensions provided for each contact configuration
- RoHS compliant: Yes
- Mounting options: Front screwlock, boardlock with threaded or rear insert options
- Environmental: Operates within -55°C to +125°C
Buy the Amphenol L177TSAG15SOL2RM8 – Reliable D-Sub Connectors for Industrial Applications
Upgrade your industrial and communication systems with the durable and reliable D-sub connector. Featuring stamped and formed contacts, steel shells with RoHS-compliant plating, and PCB mounting options, this connector offers high current capacity, excellent insulation resistance, and operational stability from -55°C to +125°C. It is designed for easy mating and unmating, ensuring secure connections in demanding environments. Order online today to enhance your system’s reliability with this high-quality, versatile connector designed for harsh industrial conditions.
Buy Amphenol L177TSAG15SOL2RM8 now and experience unmatched reliability and performance in industrial and communication systems.
