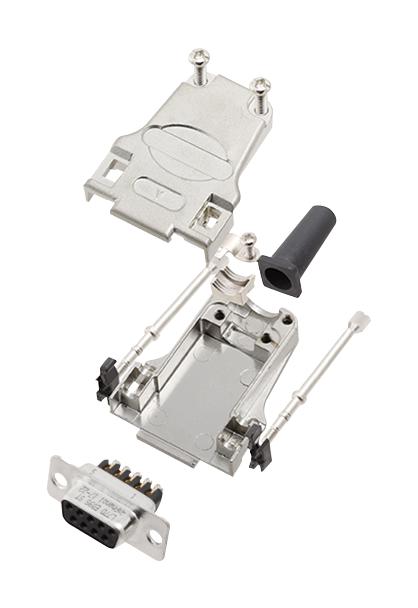

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09LJSRGL77DE09SST Metal Hood Connector
This metal hood connector is designed for reliable electromagnetic interference shielding and secure connection in industrial and electronic applications. Made from zinc with nickel plating, it operates within -45°C to +105°C. It features a top entry cable design, thumbscrews for secure fastening, and available sizes of 9, 15, and 25-way configurations. The connector includes a steel, tin-plated shell, gold flash over nickel-plated brass contact pins, and UL94 V-0 insulator material. Suitable for AWG 18 wire, it withstands over 1000V and ensures excellent insulation and durability for reliable data and power transmission in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09LJSRGL77DE09SST Metal Hood Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry
- Thumbscrews: UNC 4-40
- Cable O.D - Standard: 9-Way: up to 6.5mm with grommet, 9.5mm without; 15-Way: up to 6.5mm with grommet, 12.5mm without; 25-Way: up to 8.0mm with grommet, 12.5mm without
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Machined Brass, 15u” Gold plated over Ni
- AWG Wire Size: 18
- Contact Plating: Gold flash over Nickel
- Operating Temperature: -55°C to +85°C
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 7.5A
- Insulator Resistance: >5000MQ
- Size Options: 9, 15, 25
- Connection Type: Screw connector, re-openable
- Features: EMI shielding, sturdy metal construction
Buy the Amphenol L17DTZF09LJSRGL77DE09SST – Reliable Metal Hood Connector for Industrial Applications
Order the Metal Hood Connector from Amphenol today to ensure your industrial and electronic projects benefit from superior EMI shielding, durable construction, and secure screw-type connections. Designed for high-reliability applications, this connector features zinc and nickel-plated materials, operating within -45°C to +105°C. It supports multiple sizes of 9, 15, and 25-way configurations, with excellent electrical performance including >1000V withstand voltage and 7.5A current rating. Easily install with top entry cable design and thumbscrews, making it ideal for demanding industrial environments.
Buy Amphenol L17DTZF09LJSRGL77DE09SST now and experience unmatched reliability and performance with its excellent EMI shielding and robust design.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09LJSRGL77DE09SST?
You can click on the BUY or RFQ button to purchase L17DTZF09LJSRGL77DE09SST from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF09LJSRGL77DE09SST?
You can download the L17DTZF09LJSRGL77DE09SST datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DTZF09LJSRGL77DE09SST?
AMPHENOL COMMUNICATIONS SOLUTIONS
