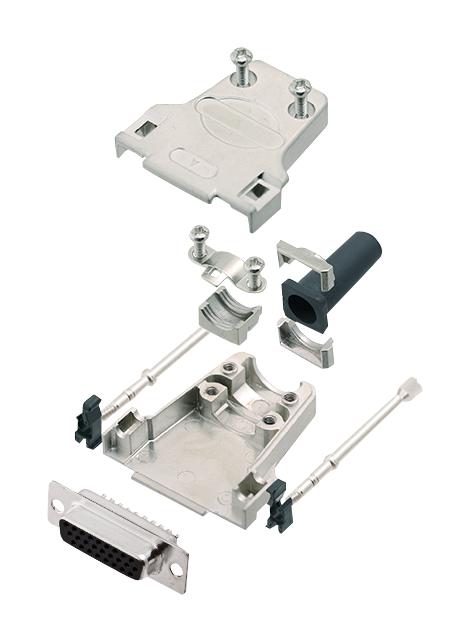

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15LJSRGL77HDA26S High Density D-Sub Connector
High-density D-Sub connector kits designed for reliable signal transmission and EMI shielding in industrial and communication applications. Featuring zinc, nickel-plated shells, gold-flash contact plating, and UL94 V-0 insulated glass-filled thermoplastic insulators, these connectors support operating temperatures from -55°C to +85°C. Available in sizes HD15, HD26, HD44, and HD62, with solder cup terminals, re-openable design, and spring-clip mounted jack screws for durability and easy assembly. Suitable for shielded connections requiring high performance and long-term reliability, ideal for electronic and communication systems.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15LJSRGL77HDA26S High Density D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry
- Cable O.D - Standard: 9-Way up to 6.5mm with grommet, 15-Way up to 6.5mm with grommet, 25-Way up to 8.0mm with grommet, 37-Way up to 9.0mm with grommet
- Insulator: Glass filled thermoplastic, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Copper Alloy
- Contact Plating: Gold flash over Nickel
- Operating Temperature: -55°C to +85°C
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 3A
- Insulator Resistance: >5000MΩ minimum
- Available sizes: HD15, HD26, HD44, HD62
- Features: EMI shielding, re-openable, spring-clip mounted jackscrews, solder cup terminals
Buy the Buy Amphenol High Density D-Sub Connector Part Number L17DTZF15LJSRGL77HDA26S Online
Discover the high reliability of these high-density D-Sub connector kits ideal for industrial, communication, and electronic applications. Made with zinc, nickel-plated shells, and gold flash contacts, they ensure excellent EMI shielding and durability. Featuring UL94 V-0 rated glass-filled thermoplastic insulators, these connectors operate efficiently from -55°C to +85°C. With solder cup terminals, spring-clip mounted jack screws, and multiple sizes (HD15, HD26, HD44, HD62), they provide easy installation and long-lasting performance for your electronic and communication systems. Purchase online today for dependable connectivity.
Get Amphenol L17DTZF15LJSRGL77HDA26S today—engineered for high reliability and optimal EMI shielding in industrial systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15LJSRGL77HDA26S?
You can click on the BUY or RFQ button to purchase L17DTZF15LJSRGL77HDA26S from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF15LJSRGL77HDA26S?
You can download the L17DTZF15LJSRGL77HDA26S datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DTZF15LJSRGL77HDA26S?
AMPHENOL COMMUNICATIONS SOLUTIONS
