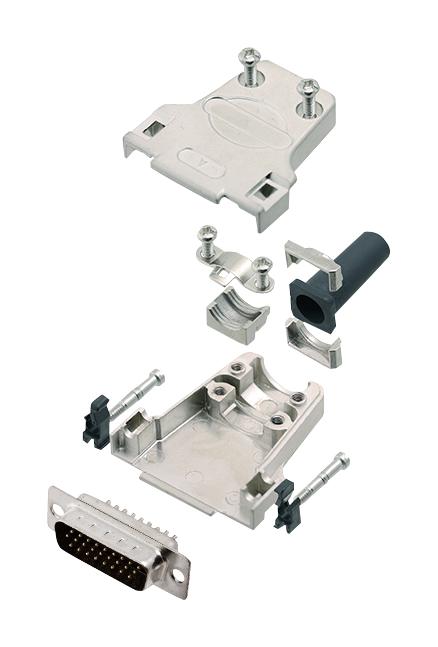

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL717HDA26P High-Density D-Sub Connector
The Full Metal Hoods DTZF-RG series are high-density D-Sub solder cups designed for reliable electrical connections in industrial and communication systems. Constructed with zinc, nickel-plated shells and glass-filled UL94 V-0 insulators, they offer excellent EMI shielding and withstand voltage of over 1000V RMS. Operating within -45°C to +105°C, these connectors feature spring-clip mounted jack screws, multiple cable entry sizes up to 9.0mm, and are available in various sizes including 15, 26, 44, and 62 pins. Ideal for demanding environments requiring durable, high-performance connections.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL717HDA26P High-Density D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, up to 9.0mm with grommet, 15.0mm without grommet
- Thumbscrews: Spring-Clip mounted Jack Screws, 9-way, 15-way, 25-way, 37-way sizes available
- Insulator: Glass filled UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Stamped & Formed Copper Alloy
- Contact Plating: Gold flash over Nickel
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 3A
- Insulator Resistance: >5000 MΩ min
- Size options: HD15, HD26, HD44, HD62
- Features: Excellent EMI shielding, re-openable, multiple pin configurations
- Part Number: L17DTZF15RGL717HDA26P
Buy the Amphenol Series High-Density D-Sub Solder Cup: L17DTZF15RGL717HDA26P
Purchase the High-Density D-Sub Solder Cup connector from Amphenol online today. Engineered for reliable, high-performance connections in demanding environments, these connectors feature excellent EMI shielding, robust zinc nickel-plated shells, and versatile cable entry sizes. Ideal for industrial automation, communication systems, and equipment requiring durable, high-density connections, the product offers easy installation, high voltage resistance, and long-term stability. Order now to ensure your critical applications benefit from exceptional quality and dependable performance.
Get Amphenol High-Density D-Sub Connector today—built for reliable performance and long-lasting durability in industrial and communication applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL717HDA26P?
You can click on the BUY or RFQ button to purchase L17DTZF15RGL717HDA26P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF15RGL717HDA26P?
You can download the L17DTZF15RGL717HDA26P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DTZF15RGL717HDA26P?
AMPHENOL COMMUNICATIONS SOLUTIONS
