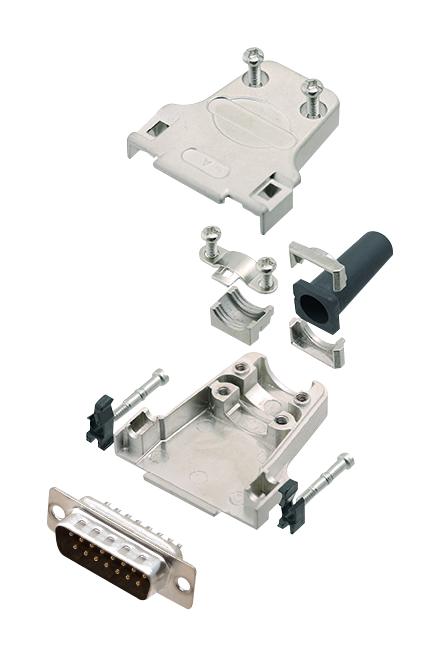

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL717SDA15P D-Sub Connector
The D-Sub connector kit offers robust, high-quality connectivity solutions with zinc alloy shells, nickel plating, and glass-filled insulators. Designed for reliable EMI shielding and re-openable features, these connectors support sizes 9, 15, 25, and 37, with cable entry capabilities up to 12.5mm without grommet and 6.5mm with grommet for 9- and 15-way models. They operate within a temperature range of -45°C to +105°C, withstand voltages over 1000V, and handle currents up to 5A, making them ideal for industrial and electronic applications requiring durability and high performance.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL717SDA15P D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, UNC 4-40
- Standard Cable O.D - 9-Way: Up to 6.5mm with grommet, 9.5mm without; 15-Way: Up to 6.5mm with grommet, 12.5mm without; 25-Way: Up to 8.0mm with grommet, 12.5mm without; 37-Way: Up to 9.0mm with grommet, 15.0mm without
- Standard D-Sub Solder Cup: Tubular shell made of Steel, Tin Plated; Insulator: Glass filled TP, UL94 V-0; Contact pins: Copper Alloy, gold flash over nickel
- Contact Plating: Gold Flash over Nickel
- Withstanding Voltage: >1000V Rms to 50Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Connector Sizes: 9, 15, 25, 37
- Re-openable, Spring-Clip mounted Jackscrews
- Dimensions: 9-way: 31.6x39.5x15.2mm, 15-way: 40.0x41.0x15.2mm, 25-way: 53.7x47.5x15.2mm, 37-way: 70.2x48.0x15.2mm
Buy the Amphenol Series 15-37 D-Sub Connector: L17DTZF15RGL717SDA15P
Purchase your Amphenol Series 15-37 D-Sub Connector now for high-performance, durable connectivity suited for industrial, electronic, and automation projects. Designed with zinc shells, nickel plating, and glass-filled insulators, these connectors provide excellent EMI shielding and re-openable features for easy maintenance. They operate reliably within -45°C to +105°C, support voltages above 1000V, and carry currents up to 5A. Get your connection solution online with confidence, ensuring durability and high quality in every application.
Order your Amphenol Series 15-37 D-Sub Connector today and ensure your electronic connections are reliable, durable, and capable of withstanding harsh environments.
