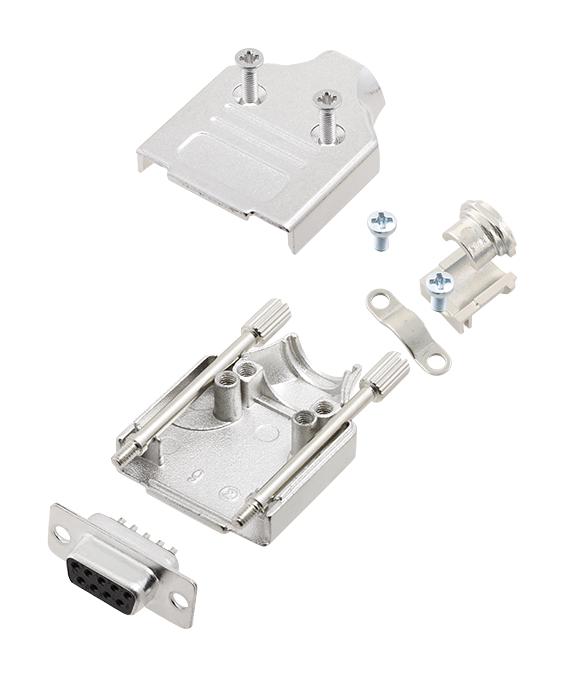

AMPHENOL COMMUNICATIONS SOLUTIONS L17MHDM09L77SDE09S D-Sub Solder Cup Connector
The D-Sub Solder Cup connector kit features a zinc, nickel-plated shell and stamped, formed copper alloy contact pins with gold flash over nickel plating. Designed for reliable electrical connections, it withstands temperatures from -55°C to +85°C and withstands voltages over 1000V RMS. Features include 360° EMI shielding, re-openability, and standard cable entry suitable for cables up to 13mm diameter. Available in sizes 9, 15, 25, and 37, this connector ensures durable, high-performance connections suitable for demanding electronic applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L17MHDM09L77SDE09S D-Sub Solder Cup Connector Specifications:
- Material: Zinc, Nickel Plated Shell; Copper Alloy Contact Pins with Gold Flash over Ni
- Operating Temperature: -55°C to +85°C
- Voltage Rating: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Material: Glass filled TP, UL94 V-0
- Cable Entry: Up to 13mm
- Thumbscrews: UNC 4-40 (Standard)
- Dimensions (Size 9): A: 32.2 mm, B: 41.3 mm, C: 15.4 mm
- Dimensions (Size 15): A: 40.6 mm, B: 43.3 mm, C: 15.4 mm
- Dimensions (Size 25): A: 54.5 mm, B: 49.5 mm, C: 15.4 mm
- Dimensions (Size 37): A: 70.7 mm, B: 54.3 mm, C: 15.4 mm
- Features: 360° EMI Shielding, Re-openable, Class 3, 100 inserts min.
- Standards: Compliant with industry electrical specifications
Buy the Amphenol Series MHDM D-Sub Solder Cup: L17MHDM09L77SDE09S
Invest in the reliable D-Sub Solder Cup connector kit from Amphenol, designed for robust electronic connections. Featuring a zinc, nickel-plated shell and copper alloy contact pins with gold overlay, this connector supports voltages over 1000V RMS and operates from -55°C to +85°C. Its 360° EMI shielding and re-openable design ensure high performance and durability for demanding applications. Available in sizes 9, 15, 25, and 37, it’s ideal for electrical, industrial, and communication systems requiring secure, high-quality connections.
Get Amphenol MHDM09L77SDE09S today—built for precision and long-lasting durability in high-performance electronic connectors.
