AMPHENOL COMMUNICATIONS SOLUTIONS L717TSEH09POL2RM8 PCB Connector
This high-performance solder cup connectors featuring a steel shell with a 100u” tin overlay and copper alloy contacts provide a reliable electrical connection rated at 250 V RMS and 3 AMP. The connectors have a durable PBT UL 94V-0 black body and are designed for PCB mounting with precise dimensions and resistance specifications. Suitable for commercial and industrial applications, these connectors ensure excellent insulation resistance (>1000 M Ohms), low contact resistance (20 mOhms max), and withstand voltages exceeding 1000 V RMS.
AMPHENOL COMMUNICATIONS SOLUTIONS L717TSEH09POL2RM8 PCB Connector Specifications:
- Shell Material: Steel, 100u” Tin over 50u” Nickel
- Body Material: PBT, UL 94V-0, Black
- Contacts: Copper Alloy with gold flash, Nickel plated
- Screw Material: Copper Alloy, Nickel Plated
- Board Lock: Copper Alloy, Tin Plated
- Voltage Rating: 250 V RMS
- Current Rating: 3 Amp
- Withstanding Voltage: >1000 V RMS
- Insulation Resistance: >1000 M Ohms
- Contact Resistance: 20 mOhms max
- Dimensions: Length varies with design, typical insertion length 6.02 mm
- RoHS Compliant: Yes
- Board Mounting Options: Front secure, with retention clip
- Recomended PCB Layout: Precise placement for reliable connection
- Tolerance: ±0.05 mm

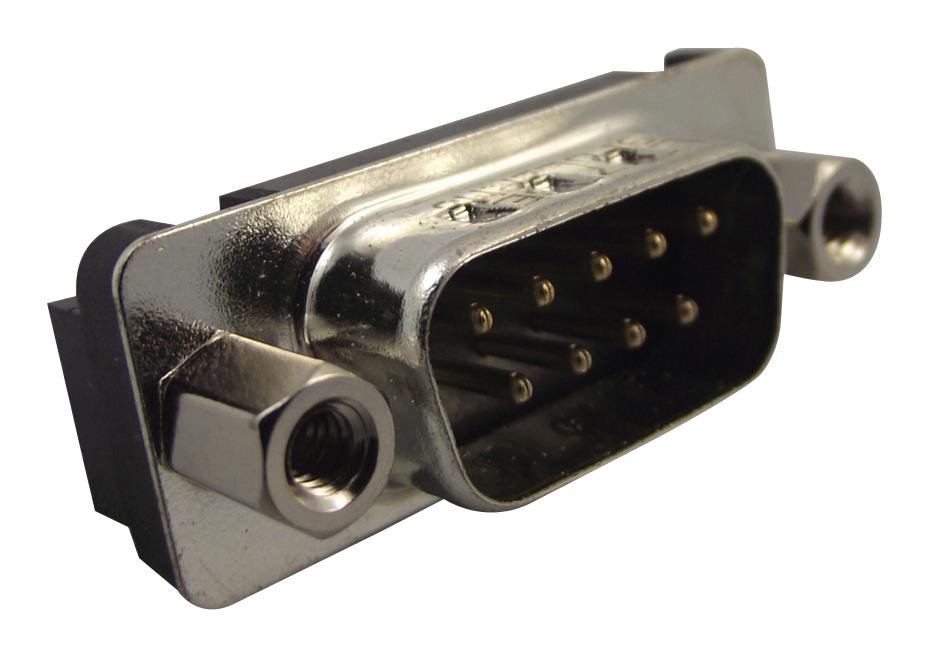

Buy the Buy Amphenol PCB Connector Part Number L717TSEH09POL2RM8 Online
Complete your electronic assemblies with the high-quality PCB connector designed for durability and reliable performance. This connector offers a secure and stable connection with a steel shell and copper alloy contacts. Rated at 250 V and 3 A, it withstands voltages over 1000 V RMS, ensuring safe operation in industrial and commercial environments. Easy to install on PCB boards, it features precise dimensions, RoHS compliance, and a robust construction that guarantees long-term durability and resistance to corrosion. Perfect for manufacturing and repair projects requiring dependable connectivity solutions.
Get Amphenol L717TSEH09POL2RM8 today—built for reliable PCB connections with high current capacity and corrosion resistance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L717TSEH09POL2RM8?
You can click on the BUY or RFQ button to purchase L717TSEH09POL2RM8 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L717TSEH09POL2RM8?
You can download the L717TSEH09POL2RM8 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L717TSEH09POL2RM8?
AMPHENOL COMMUNICATIONS SOLUTIONS
