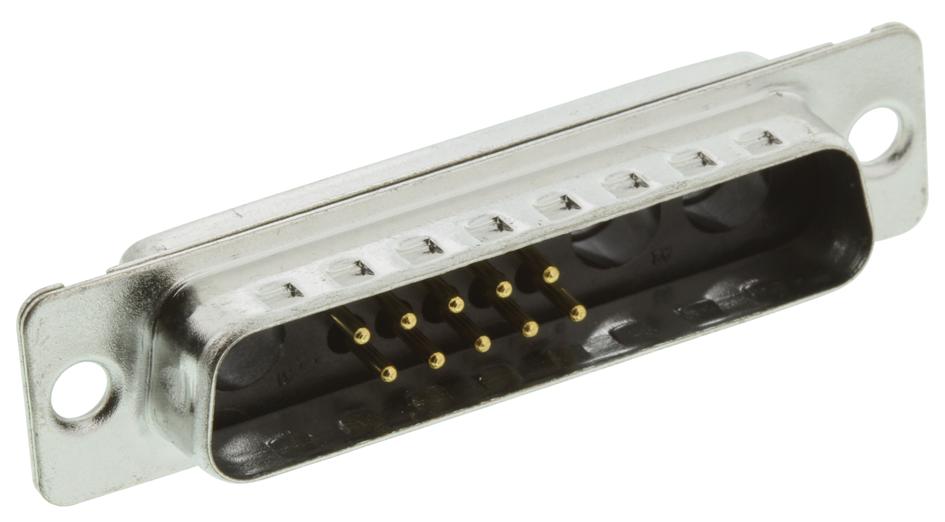

AMPHENOL COMMUNICATIONS SOLUTIONS L717TWB13W3P Hybrid D-Sub Connector
The TW Hybrid D-Sub series features versatile connectors capable of integrating signal, power, shielded, high voltage, and fiber optic contacts in a single housing with 18 contact arrangements. Developed from military-grade designs, they include improved contact integrity, preloaded PCB configurations, and fixed contacts with brackets, making installation straightforward. Their robust construction supports temperatures from -55°C to 155°C, with excellent electrical performance—insulation resistance over 5000 Megohms at 500V, contact resistance below 5 milliohms, and a current rating of 7.5A. Ideal for communications, industrial, and computing environments requiring space-efficient, reliable connections.
AMPHENOL COMMUNICATIONS SOLUTIONS L717TWB13W3P Hybrid D-Sub Connector Specifications:
- Operating Temperature Range: -55°C to 155°C
- Shell Material: Steel with Tin plating
- Contact Material: Machined bronze and brass
- Current Rating: 7.5A
- Insulation Resistance: >5000 MΩ at 500VDC
- Contact Resistance: <5 mΩ
- Voltage Rating: 300V RMS at 50Hz
- Minimum Mating Cycles: 2200 (Class I) and 500 (Class II)
- Contact Plating: 15U
- Dielectric Withstanding Voltage: 1000V at 50Hz
- Assembly: Fixed contacts and brackets, screw-machined contacts
Buy the Amphenol Series TW Hybrid D-Sub: L717TWB13W3P
Enhance your electrical system with the advanced Amphenol Series TW Hybrid D-Sub connector, offering multi-contact support including signal, power, shielded, high voltage, and fiber optics. Designed with military-grade reliability, these connectors feature preloaded PCB configurations and screw-machined contacts for secure, durable connections. Operating across -55°C to 155°C temperatures, they provide over 5000 Megaohms insulation resistance, low contact resistance below 5 milliohms, and a current capacity of 7.5A. Ideal for industrial, communication, and networking applications, ensuring space savings and high performance.
Order your Amphenol Series TW Hybrid D-Sub connector today and give your projects the dependable, versatile connectivity they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L717TWB13W3P?
You can click on the BUY or RFQ button to purchase L717TWB13W3P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L717TWB13W3P?
You can download the L717TWB13W3P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L717TWB13W3P?
AMPHENOL COMMUNICATIONS SOLUTIONS
