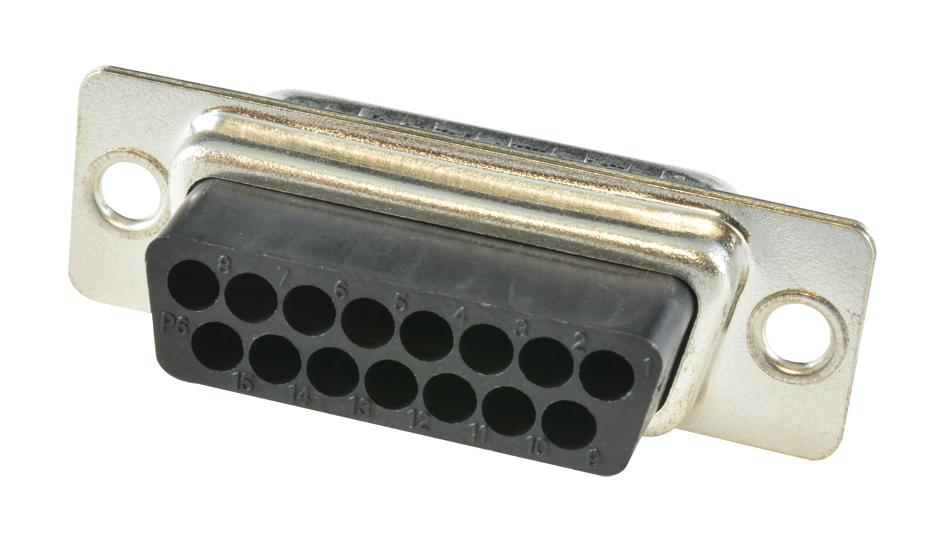

AMPHENOL COMMUNICATIONS SOLUTIONS L777RRA15P D-sub connector housing
The L777RRA15P is a 15-position male connector housing designed for RR series D-sub contacts. It features a black flame-retardant, glass-filled thermoplastic body with UL94V-0 ratings and a tin-plated over nickel steel shell. This connector housing supports a voltage rating of 1000V RMS at 60Hz and has an insulation resistance exceeding 1000 Megaohms. Suitable for industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L777RRA15P D-sub connector housing Specifications:
- Shell Material: Steel yellow chromated over zinc or tinned steel
- Insulator Material: Black glass-filled thermoplastic, UL 94V-0
- Rear Insert: Brass, 118u" up to 197u" (3um up to 5um), tinned over nickel 78u" up to 118u" (2um up to 3um)
- Contacts: Crimp side, gold-plated, contact resistance max 10mΩ
- Current Rating: 5A
- Voltage Rating: 1000V AC/rms at 60Hz
- Withstanding Voltage: 1000V AC/rms for 1 minute
- Insulation Resistance: >1000 Megaohms
- Wire Size: 20-28 AWG max., insulation out .05" (1.27mm)
- Operating Temperature: -55°C to +105°C (67°F to 221°F)
- Mating and Unmating Force: specified per size (e.g., size E max 8.42 lbs.)
Buy the Amphenol 15P – Reliable D-Sub Male Connector Housing for Industrial Applications
Order the Amphenol D-sub connector housing online today and ensure secure, high-quality connections for industrial and electronic applications. Designed with durable thermoplastic and steel components, it offers excellent electrical characteristics, UL94V-0 flame rating, and high insulation resistance. Ideal for penetrating demanding environments, the 15-position male housing supports 1000V RMS and a max current of 5A, making it perfect for reliable signal and power transmission in complex systems. Secure your order now for quick delivery and professional quality.
Buy Amphenol 15P connector housing now and experience unmatched reliability and performance in your industrial terminals.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L777RRA15P?
You can click on the BUY or RFQ button to purchase L777RRA15P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L777RRA15P?
You can download the L777RRA15P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L777RRA15P?
AMPHENOL COMMUNICATIONS SOLUTIONS
