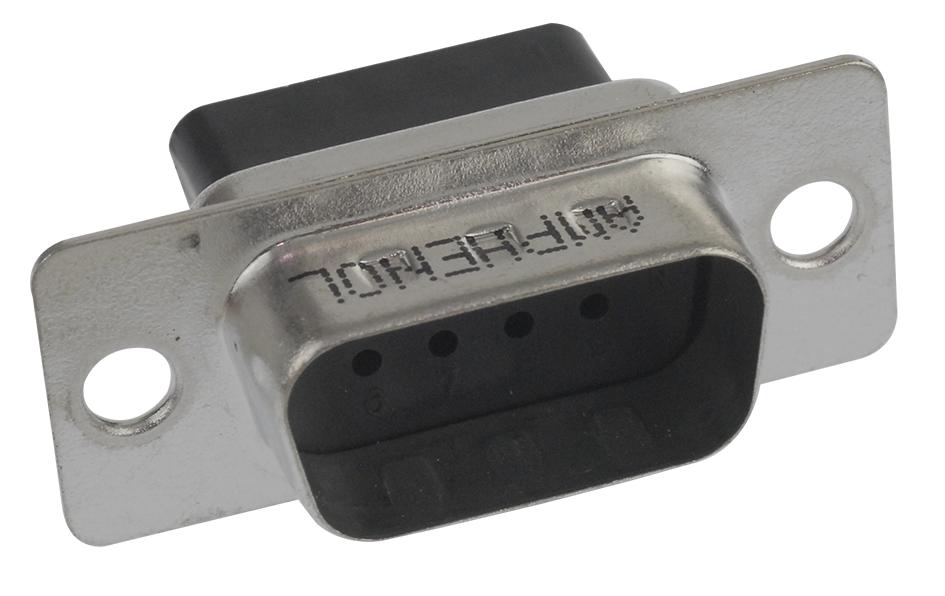

AMPHENOL COMMUNICATIONS SOLUTIONS L777RRE09P D-Sub Plug
The L777RRE09P is a 9-position standard density D-sub plug featuring pin-type contacts optimized for reliable connections in communication, industrial, and networking systems. It has a glass-filled thermoplastic housing with UL94V-0 rating and a sturdy tin-plated steel shell with dimples for enhanced secure connection. Designed for high-volume applications, it includes a rear mount with a standard rivet, EMI/RFI shielding, and removable contacts for maintenance. It offers a dielectric withstand voltage of 1000VAC, an insulation resistance of 1000 MΩ, and a maximum contact resistance of 10 mΩ, supporting 5A current and 500VAC voltage, ensuring durability and stable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS L777RRE09P D-Sub Plug Specifications:
- Housing Material: Glass-filled thermoplastic UL94V-0
- Shell Material: Tin-plated steel with dimples
- Number of Positions: 9
- Contact Type: Pin
- Contact Plating: Tin
- Contact Resistance: 10 mΩ max.
- Insulation Resistance: 1000 MΩ
- Dielectric Withstanding Voltage: 1000VAC at 50Hz for 1 minute
- Current Rating: 5A
- Voltage Rating: 500VAC at 50Hz
- Operating Temperature Range: -55°C to +105°C
- Mounting: Rear with standard rivet (Ø3.1mm)
- Certifications: UL, CSA
- Application: Communication, industrial, networking
Buy the Buy Amphenol D-Sub Plug Part Number L777RRE09P Online
Purchase the Amphenol D-Sub Plug L777RRE09P online for dependable high-performance connections in communication, industrial, and networking applications. Featuring a durable thermoplastic housing with UL94V-0 rating and a sturdy tin-plated steel shell, this connector ensures reliable, long-lasting performance. Its design includes removable contacts, secure rear mount with standard rivets, and EMI/RFI shielding, providing excellent electrical stability and ease of maintenance. Ideal for high-volume production, it supports 5A current, 500VAC voltage, and withstands harsh operating environments. Fast, secure online ordering guarantees quick delivery for professional and industrial needs.
Get Amphenol L777RRE09P today—built for precision, high reliability for communication and industrial systems with secure connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L777RRE09P?
You can click on the BUY or RFQ button to purchase L777RRE09P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L777RRE09P?
You can download the L777RRE09P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L777RRE09P?
AMPHENOL COMMUNICATIONS SOLUTIONS
