AMPHENOL COMMUNICATIONS SOLUTIONS L777TSEG09POL2RM8 D-sub connector
The L777TSEG09POL2RM8 is a high-quality D-sub connector with stamped and formed contacts, designed for reliable PCB termination and panel mounting. It features a steel shell with tin over nickel plating, glass-filled thermoplastic insulator UL 94V-0, and copper alloy contacts with gold plating for superior electrical performance. This connector supports a current rating of 5A and a voltage rating of 600V AC/rms, with withstand voltage up to 1000V AC/rms. Operating temperature ranges from -55°C to +125°C, suitable for industrial and telecom applications, with various mounting options including threaded inserts and screwlocks.
AMPHENOL COMMUNICATIONS SOLUTIONS L777TSEG09POL2RM8 D-sub connector Specifications:
- Material: Steel shell with tin over nickel plating
- Insulator: Glass-filled thermoplastic, UL 94V-0
- Contacts: Copper alloy, with selective gold plating
- Current rating: 5A
- Voltage rating: 600V AC/rms
- Withstand voltage: 1000V AC/rms for one minute
- Insulation resistance: 5000MΩ
- Contact resistance: 10mΩ max
- Operating temperature: -55°C to +125°C
- Mating and unmating force: 2 (kg) for 9 contacts
- Shell size dimensions vary by configuration, with appropriate PCB layout recommendations
- RoHS compliant plating options, including gold flash and tin
- Panel mounting: #4-40 or M3 threaded options
- Other: Compatible with different locking and grounding configurations including pins and sockets

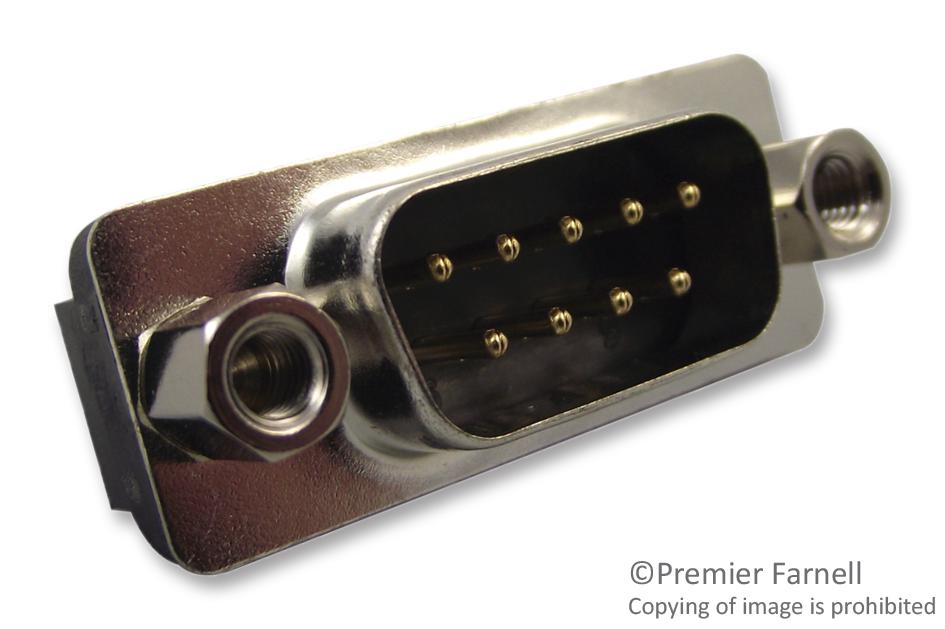

Buy the Buy Amphenol D-sub Connector Part Number L777TSEG09POL2RM8 Online
Secure your connection with the Amphenol D-sub connector, designed for industrial, telecom, and electronics applications. Featuring high-quality stamped contacts, a robust steel shell with tin over nickel plating, and UL 94V-0 thermoplastic insulation, this connector guarantees durability and safety in demanding environments. Rated at 5A and 600V, with withstand voltage of 1000V AC, it performs reliably over a temperature range of -55°C to +125°C. The connector supports multiple mounting configurations, including threaded inserts, screwlocks, and various grounding options, making it an ideal choice for your electronic and industrial assemblies.
Get Amphenol L777TSEG09POL2RM8 today—built for durability with reliable electrical contacts and versatile mounting options.
