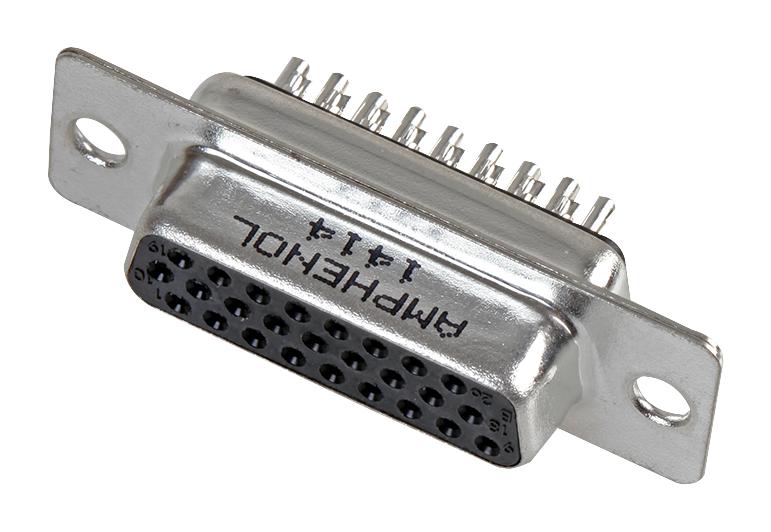

AMPHENOL COMMUNICATIONS SOLUTIONS L77HDA26S D-Sub Connector
The D-Sub connector series features precision-formed contacts and closed entry contact cavities, providing high reliability for industrial, telecom, and standard connection applications. Constructed with durable materials, these connectors support high current and voltage ratings, withstand harsh environmental conditions, and offer various panel mounting and plating options. Suitable for PCB mounting, they are engineered for robust performance in commercial and industrial settings, ensuring secure connections with excellent electrical resistance and temperature tolerance. Their compact size and reliable contact design make them ideal for demanding electronic systems requiring high-quality, durable connectors.
AMPHENOL COMMUNICATIONS SOLUTIONS L77HDA26S D-Sub Connector Specifications:
- Shell Material: Steel, RoHS compliant
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Pin Contact Material: Brass with gold plating, 2.54μm tin on termination
- Socket Contact Material: Phosphor bronze, gold in mating area, 2.54μm tin, nickel plated
- Current Rating: Standard Density 5A, High Density 3A
- Voltage Rating: 250V AC/rms; 1000V AC/rms for one minute
- Insulation Resistance: 1000MΩ at 500V DC
- Contact Resistance: Max 20mΩ
- Operating Temperature: -55°C to +125°C
- Withstanding Voltage: 1000V AC/rms for one minute
- Mechanical Forces: Insertion force SD: 0.06kg min, max 0.54kg; HD: 0.02kg min, max 0.52kg
- Dimensions: Overall length varies with contact count, standard density approx 12.55mm length, high density approx 8.38mm
- Plating Thickness: Gold flash, 0.381μm (151”), 0.76μm (30μ”), optional gold plating
- Connectors according to MIL C24308 NFC 93425-HES standards
Buy the Amphenol L77HDA26S – Reliable D-Sub Connector for Industrial Applications
Purchase the Amphenol D-Sub connector today for secure, reliable PCB connections in industrial and telecom systems. With high-quality materials, precise construction, and compliance with industry standards, this connector offers excellent electrical performance, high durability, and versatile mounting options. Ideal for demanding applications requiring high current and voltage ratings, it features precision contacts, durable shells, and optional gold plating for enhanced corrosion resistance. Shop online now to ensure your electronic systems are supported by a high-performance, compliant connector designed for long-term reliability.
Get Amphenol L77HDA26S today—built for precision, durability, and high-performance electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L77HDA26S?
You can click on the BUY or RFQ button to purchase L77HDA26S from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L77HDA26S?
You can download the L77HDA26S datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L77HDA26S?
AMPHENOL COMMUNICATIONS SOLUTIONS
