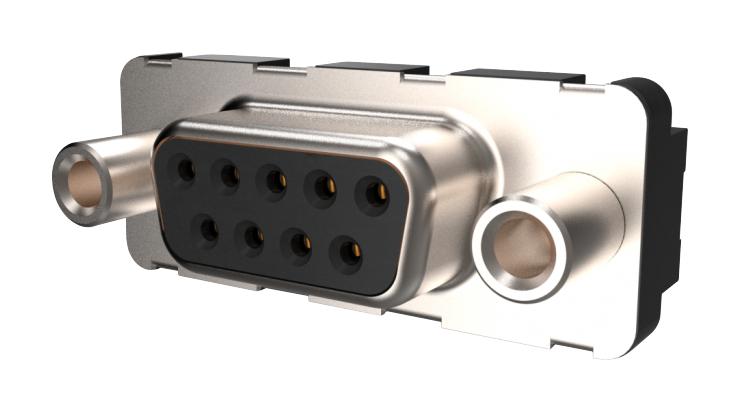

AMPHENOL COMMUNICATIONS SOLUTIONS LD09S33E4GX00LF D-Subminiature connector
The LD09S33E4GX00LF is an economical D-Subminiature connector designed for less demanding applications, including consumer electronics, set-top boxes, data and energy meters. It features a D-shaped shell supporting polarization, meets DIN 41652 and MIL-C-24308 standards, and offers reliable performance with up to 50 mating cycles. Constructed with a steel shell and gold flash over nickel contacts, it supports a current rating of 5A and a rated voltage of 250V, suitable for industrial, instrumentation, and control device uses, ensuring durability and compatibility.
AMPHENOL COMMUNICATIONS SOLUTIONS LD09S33E4GX00LF D-Subminiature connector Specifications:
- Materials: Steel shell, gold flash over nickel contacts, glass filled thermoplastic insulator (UL94V-0)
- Electrical: Current Rating 5A, Rated Voltage 250V, Contact Resistance <25mQ, Insulation Resistance >5000MQ, Dielectric Strength 1000V RMS
- Environmental: Operating Temperature Range -55°C to +105°C
- Mechanical: Durability 50 mating cycles, retention torque 0.5Nm
- Dimensions & Body: Based on part number LD09S33E4GX00LF, complies with industry standards for footprint and pin pitch
Buy the Economy Series D-Subminiature Connectors: LD09S33E4GX00LF
Order the FCI LD09S33E4GX00LF D-Subminiature connector today for reliable performance in consumer, industrial, and instrumentation applications. It features a robust steel shell, gold flash plated contacts for superior conductivity, and supports up to 50 mating cycles. Designed to meet industry standards, this connector offers excellent environmental resistance and easy PCB mounting options. Perfect for energy meters, set-top boxes, control devices, and other less demanding applications where durability and polarization are essential. Buy online now for fast delivery and quality assurance.
Get FCI LD09S33E4GX00LF today—built for precision and long-lasting durability in less demanding electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS LD09S33E4GX00LF?
You can click on the BUY or RFQ button to purchase LD09S33E4GX00LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part LD09S33E4GX00LF?
You can download the LD09S33E4GX00LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of LD09S33E4GX00LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
