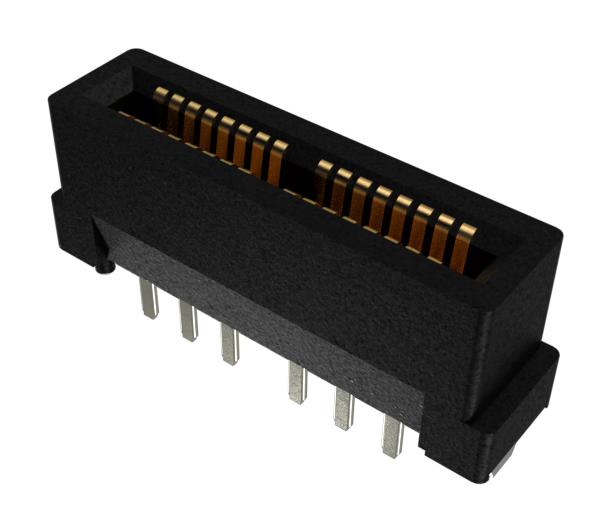

AMPHENOL COMMUNICATIONS SOLUTIONS ME10000401P0011 High-Speed Card Edge Connector
The Mini Cool Edge connector is a 0.60mm high-density, high-speed card edge connector designed for small form factor systems. It supports multiple configurations such as right angle, mezzanine, and coplanar, with compliance to standards like SFF-TA-1002, Gen Z, EDSFF, and OCP NIC 3.0. This connector supports high data transfer speeds from 32GT/s up to 112G PAM4, features a discrete pin design, and accommodates different power and signal pin counts, making it ideal for SSDs, NICs, and FPGA modules in enterprise and datacenter applications.
AMPHENOL COMMUNICATIONS SOLUTIONS ME10000401P0011 High-Speed Card Edge Connector Specifications:
- Contact Base Metal: Copper Alloy
- Contact Area Finish: Gold over Nickel
- Solder Area Finish: Tin over Nickel
- Housing: High temperature thermoplastic (UL 94V-0)
- Electrical Performance: Supports 32GT/s to 112G PAM4, Power Rating: 72W max, Contact Resistance: 30mΩ max.
- Mechanical Durability: 200 mating cycles, Mating Force: 0.75N/pin max., Unmating Force: 0.12N/pin min.
- Supports PCB thickness from 1.6mm to 3.0mm, custom pin count options available, Operating Temp: -55°C to +105°C.
Buy the Amphenol ME10000401P – Reliable High-Speed Connectors for Industrial Applications
Purchase the high-speed miniature edge connector today to ensure reliable performance in small form factor systems. Designed for applications like SSDs, NICs, and FPGA modules, this connector supports data rates up to 112G PAM4. Its high-quality materials and precise engineering provide excellent durability, withstanding up to 200 mating cycles. Compatible with various PCB thicknesses, it offers flexibility for multiple configurations. Order now to enhance your enterprise or datacenter systems with a trusted, industry-standard connector that guarantees long-lasting performance and secure connections.
Get Amphenol ME10000401P today—designed for high-speed data transfer and durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ME10000401P0011?
You can click on the BUY or RFQ button to purchase ME10000401P0011 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ME10000401P0011?
You can download the ME10000401P0011 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ME10000401P0011?
AMPHENOL COMMUNICATIONS SOLUTIONS
