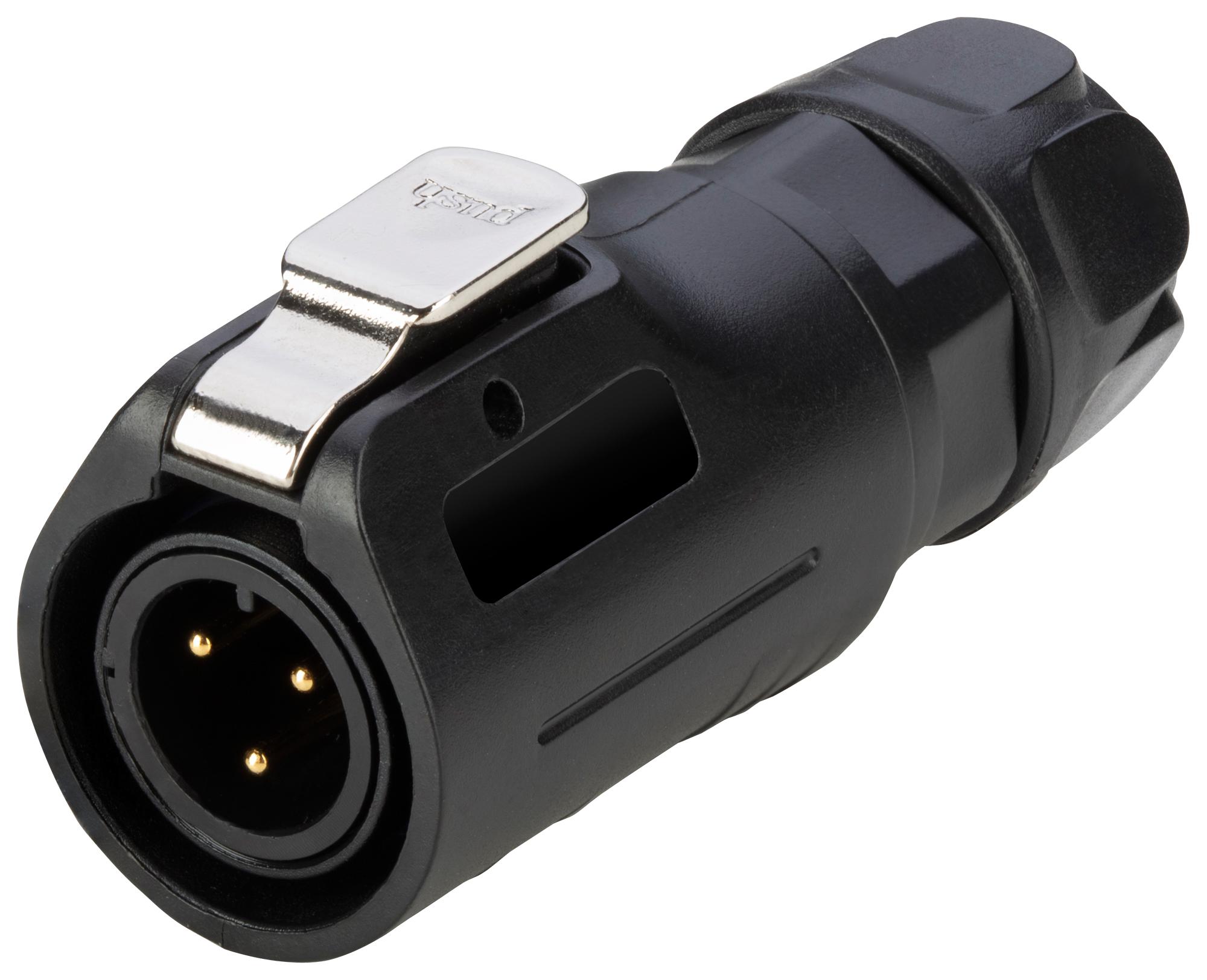

AMPHENOL COMMUNICATIONS SOLUTIONS MRDAH03M15000 circular industrial connector
The MRD Series Rugged Circular Locking Connectors are highly durable, water and dust resistant IP67-rated connectors suitable for industrial, LED lighting, medical, and power management applications. They come in 2, 3, and 4-position configurations with plastic or metal housings, featuring robust locking mechanisms for secure connections. Made with copper alloy contacts gold-flashed over nickel, these connectors support high power and signal transmission, with current ratings up to 10A and voltage ratings up to 500 VAC. Designed for harsh environments, they endure over 500 mating cycles and operate efficiently between -55°C and +105°C.
AMPHENOL COMMUNICATIONS SOLUTIONS MRDAH03M15000 circular industrial connector Specifications:
- Housing Material: Engineering thermoplastic UL94V-0 rated or die cast Zinc alloy, chrome plated
- Contact Material: Copper Alloy with gold flash over nickel
- Current Rating: 5A for 1.0mm contacts, 10A for 1.5mm contacts
- Voltage Rating: 300 VAC for 1.0mm contacts, 500 VAC for 1.5mm contacts
- Operating Temperature: -55°C to +105°C
- Environmental Resistance: Salt spray 250 hours, RoHS compliant
- Durability: 500 mating cycles
- Water/Dust Proof: IP67 rated
- Wire Range: Up to #18 AWG for 1.0mm contacts, up to 6 AWG for 1.5mm contacts
Buy the Buy Amphenol MRD Series Rugged Circular Locking Connectors Part Number MRDAH03M15000 Online
Purchase the Amphenol MRD Series Rugged Circular Locking Connectors online today and ensure your industrial, LED lighting, medical, and power systems have reliable, waterproof, and durable connections. These connectors offer high power capacity, secure locking mechanisms, and environmental resistance. With a range of configurations including 2, 3, and 4 positions, designed for efficiency over hundreds of mating cycles, they are ideal for harsh environments and critical applications. Order now to enhance your project's reliability and performance with trusted industrial-grade components.
Order your Amphenol MRD series 3 position pin connector today and experience secure, waterproof connections for your industrial and power management projects.
