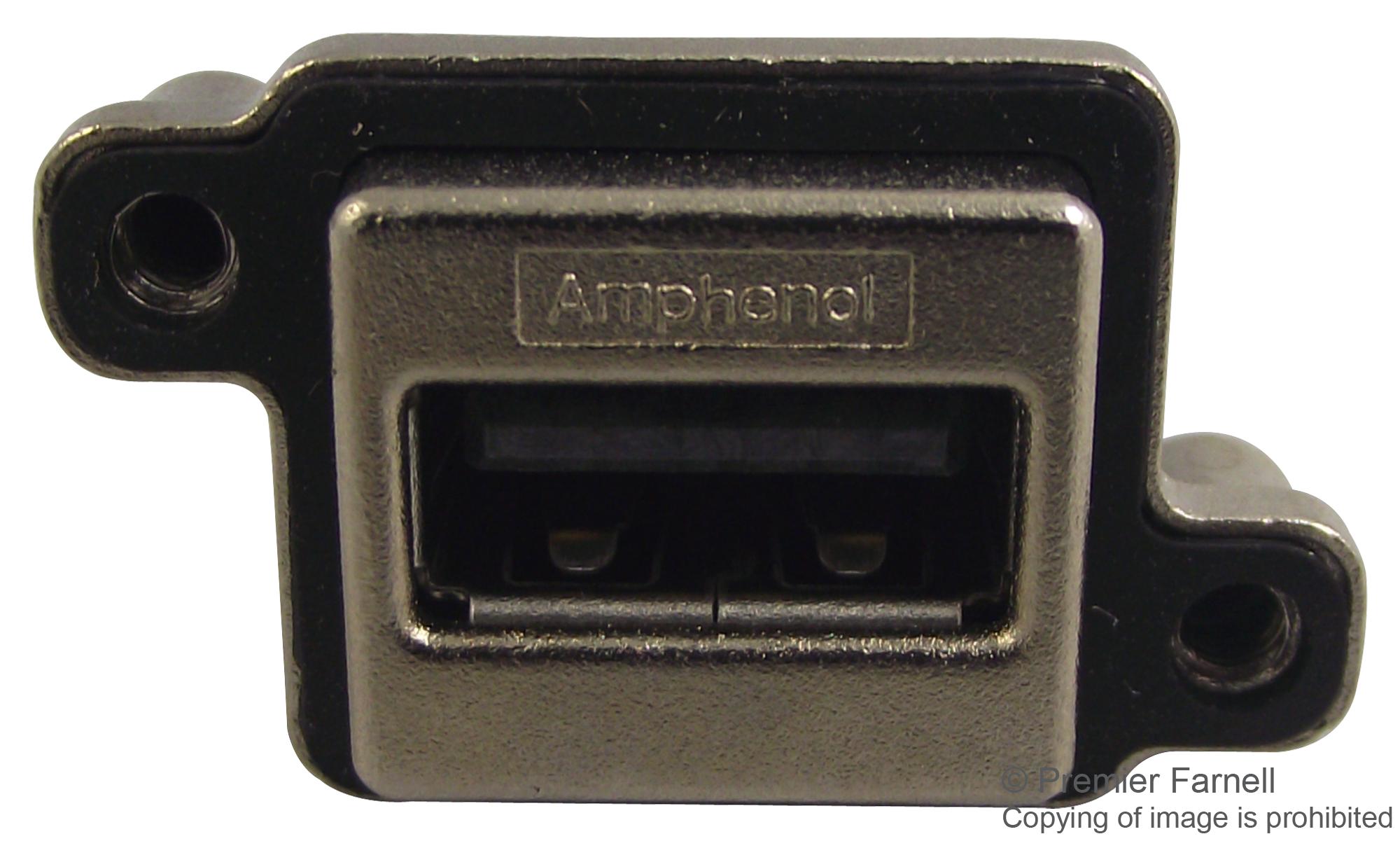

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBA111M5 Rugged USB Connector
The Rugged USB connector series offers durable, IP67-rated interfaces designed for harsh environments, providing reliable data transfer up to 480 Mb/s. Compatible with USB 2.0 standard plugs, these connectors feature right angle and vertical mounting options, with various termination styles including solder cups and terminal blocks. Constructed with high-quality materials like thermoplastic housings and nickel-plated die-cast shells, they are suitable for applications in military, industrial, medical, and entertainment sectors. They meet military shock, vibration, and humidity standards, ensuring longevity and dependable performance in demanding conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBA111M5 Rugged USB Connector Specifications:
- Connector Type: Rugged USB Receptacle
- USB Version: USB 2.0
- Data Rate: Up to 480 Mb/s
- Current Rating: 1.5A per contact (Series A & B), Up to 1.8A (Series Micro-AB)
- Material: Phosphor Bronze contacts with gold over nickel plating
- Housing: Engineering thermoplastic, UL94V-0 rated, black or white, grey for series K
- Shell: Nickel-plated die cast zinc alloy
- Temperature Range: -40°C to +105°C
- Ingress Protection: IP67 per IEC 60529 when mated and unmated
- Shock & Vibration: Meets MIL-STD levels; Shock: 30G, Vibration: EIA364-28
- Humidity Resistance: EIA364-31 Condition C
- Salt Spray: 250 hours per EIA364-26
- Mating Cycles: 1500 for Series A & B, up to 10,000 for Series Micro-AB
- Soldering: Hand or wave soldering, peak temperature 260°C for 8 seconds
- Mounting: Right angle or vertical, various termination styles including solder cups, terminal blocks, and PCB mounting
- Materials: Thermoplastic housing, die cast zinc, phosphor bronze contacts
- Operating Temperature: -40°C to +105°C
Buy the Amphenol MUSBA111M5 – Reliable Rugged USB for Industrial Applications
Enhance your equipment with the rugged USB connector designed for harsh environments. Featuring IP67 waterproof protection, high durability, and reliable data transfer up to 480 Mb/s, this connector is ideal for military, industrial, medical, and entertainment applications. Its robust construction withstands shock, vibration, and humidity, ensuring long-lasting performance. With a variety of mounting options and termination styles, it offers versatility for different installation needs. Buy online today to secure a dependable and durable USB interface for your demanding projects.
Get Amphenol MUSBA111M5 today—built for durability and high-performance USB connections in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MUSBA111M5?
You can click on the BUY or RFQ button to purchase MUSBA111M5 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MUSBA111M5?
You can download the MUSBA111M5 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MUSBA111M5?
AMPHENOL COMMUNICATIONS SOLUTIONS
