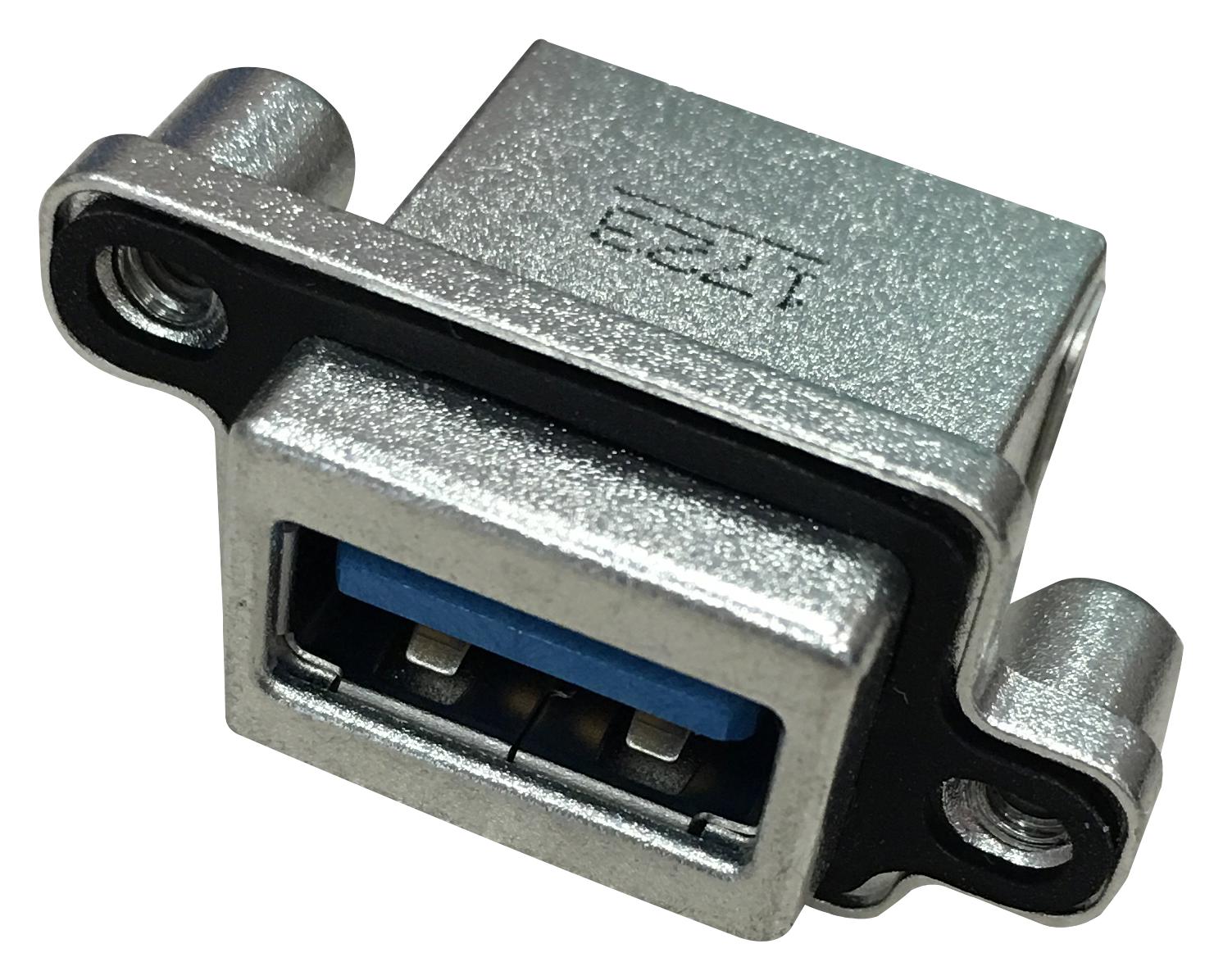

Amphenol Communications Solutions MUSBR3193M0 Rugged USB 3.0 Connector
The MUSBR3193M0 is a rugged USB 3.0 connector designed for harsh environments, offering IP67 water and dust proof performance, sealed interfaces, and robustness in extreme temperatures from -55°C to +105°C. It features a die-cast zinc nickel-plated shell, phosphor bronze contacts with gold and nickel plating, and a thermoplastic housing rated UL94V-0. Capable of 1500 mating cycles, it supports data rates up to 5 Gb/s, with a current rating of 1.5A per contact, suitable for industrial and telecommunication applications requiring high durability and reliable connections in demanding conditions.
Amphenol Communications Solutions MUSBR3193M0 Rugged USB 3.0 Connector Specifications:
- External Shell: Die Cast Zinc, Nickel Plated
- Contacts: Phosphor Bronze with 30u'' min Gold over 50u'' min Nickel
- Housing: Engineering Thermoplastic, UL94V-0 Rated, Blue
- Durability: 1500 Mating Cycles
- Current Rating: 1.5A per contact
- Contact Resistance: 30mΩ max
- Insulation Resistance: 1000MΩ
- Dielectric Withstanding Voltage: 500VAC @ sea level
- Operating Temperature Range: -55°C to +105°C
- Sealing: IP67 water and dust proof, sealed in mated and un-mated conditions
- Mechanical Performance: Meets Military Shock & Vibration standards
- Environmental Resistance: Salt spray 250 hours, thermal shock -40°C to +125°C, humidity per EIA364-31
- Compatibility: Mates with USB 2.0 and USB 3.0 Type A plugs
Buy the Buy Amphenol USB 3.0 Part Number MUSBR3193M0 Online
Discover the durable and reliable Amphenol USB 3.0 connector designed for extreme conditions. Featuring IP67 sealing, high durability, and fast data transfer up to 5 Gb/s, this connector is suitable for industrial, telecommunication, and medical applications. Its rugged construction with die-cast zinc shell, gold-plated contacts, and thermoplastic housing ensures longevity and high performance. Withstanding thermal shocks, salt spray, and vibration, it guarantees seamless connections and optimal performance in demanding environments. Purchase online today to enhance your rugged applications with this reliable interface.
Buy Amphenol MUSBR3193M0 rugged USB 3.0 connector now and experience unmatched reliability and high-speed data transfer in harsh environments.
